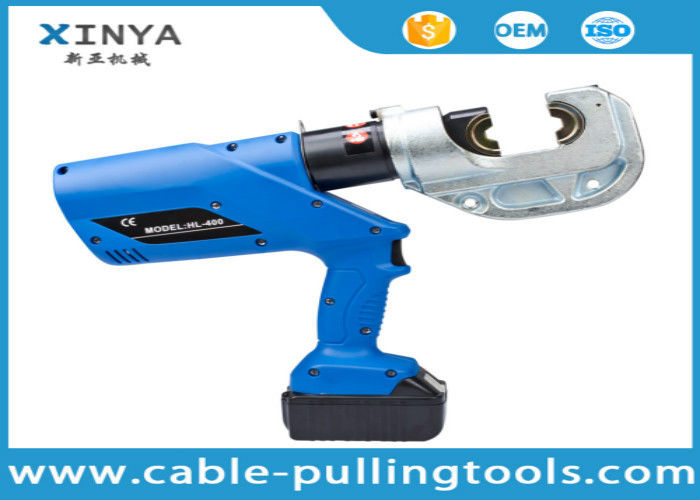

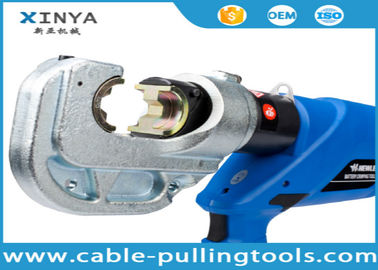

HL -400 Portable Battery Electrical Crimping Tools For Crimping 16-400mm2

HL -400 Portable Battery Electrical Crimping Tools For Crimping 16-400mm2

Feature:

•Micro computer control system-automatically detect the pressure when it is crimping,with double safety protect.

•Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.

•The tool equipped with double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping,

•The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

•If a deviation from the set operation pressure or low battery charges is identified,an acoustic aignal sounds and a red display flashes.

•One key control-press the trigger to start working,half loosing the trigger means stop forcing pressure,loosing fully means piston return to the original position.

•Li-ion batteries do neither have a memory effect nor self discharge.Even after long periods of non operation the tool is always ready to operate.In addition we see a power weight ratio with 50% more

capacity and shorter charging cycles compare to NiMH batteries.

•A temperature sensor makes the tools stop working automatically when the temperature over 60℃ under long time working,the fault signal sounds,it means the tool can't continue work until the temperature reduced to the normail.

Technical Data
