Product Details:
|
| Application: | Cable Pulling | Rod Diameter: | 4.5mm |
|---|---|---|---|
| Material: | Fiberglass Reinforced Plastic | Length Of Pulling Rod: | 200M |
| Name: | 4.5mm 200m Yellow Color Fiberglass Duct Rodder For Cable Laying Project | Type: | Cable Rod |
| MOQ: | 1 Set | Warranty: | 1 Year |
| Highlight: | cable laying equipment,cable drum trailer |
||

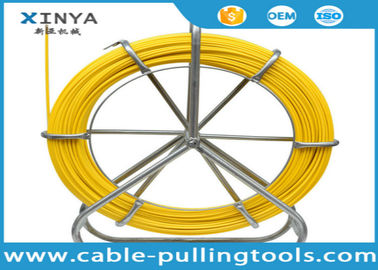

4.5mm 200m Yellow Color Fiberglass Duct Rodder for Cable Laying Project
Application
1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Features
1. Strong non-conductive fiberglass rod construction
2. Stainless steel drawing head
3. For longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod
Technical Data
|
Specification |
Rod Diameter (mm) |
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|
Rod Length (m) |
30~500 |
|
|
Frame Spec.(mm) |
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc |
|
|
Wheel Diameter(mm) |
300mm |
|
|
Wall thickness of Metal Frame |
2.2mm |
|
|
Color |
blue, yellow, red, white etc |
|
|
Material |
Rod Inner |
Extruded by fiber glass and high strength resin at high temperature |
|
Rod Outer |
High Density polyethylene coating |
|
|
Iron Frame |
Steel with high-temperature sprayed plastic or Spray coating |
|
|
Wheel |
rubber |
|
|
Brake |
Yes |
|
|
Drawing head |
copper |
|
|
Physical Characters |
Density |
55g/m |
|
Working temperature |
-40°C to +80°C |
|
|
Breaking tension |
100kg |
|
|
Bending Radius |
295mm |
|
|
Technology |
Pultrusion |
|
|
Packaging |
Inside |
plastic woven strip wind around the frame |
|
Outside |
Wooden pallet and Wooden box |
Detail Images
After-sale Service Warranty
The after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of XINYA, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution. We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients as follows:
Training courses Get the best performance
XINYA is not a "simple manufacturer" - XINYA is Your best partner! Our Professional Group can offer their expertise by holding technical courses to all customers maximum one month time, and provide accommodation.
Customer support Customer is our first priority
Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy Boyu machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.
1. We will provide some easily damaged parts of the equipment to ensure the normal operation.
2. If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, XINYA shall take full responsibility and bear all the economic losses incurred.
3. If any other quality problems occurs within the guarantee period, XINYA shall provide online video service after receive the buyer’s notice in 24 hrs.
4. If any big quality problems occurs out of the guarantee period,XINYA will also provide online video service after receive the buyer’s notice in 48 hrs.
5. XINYA will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
