Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter

Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter
Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter

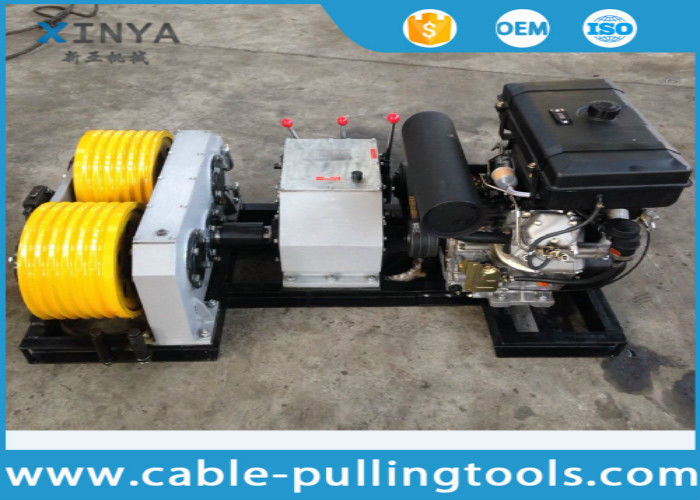

Large Image :  Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: JJM-5SC
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: US $2,500 - 3,200 / Set
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Set/Sets per Month
Contact Now

Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter

Description
Usage: Cable Pulling Power Source: Diesel Engine
Sling Type: Wire Rope Maximum Lifting Weight: 50kn
Warranty: One Year MOQ: 1 Set
Weight(kg): 300 Dimension(mm): 1300*670*600
Groove: 6
High Light:

wire pulling tools

,

conductor stringing equipment

Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter





Application



Used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical  shape and coming with steel rope.



Technical Data

Model Type Overall Size(mm) Weight(kg) Power Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5SC 1300*670*600 300 Diesel engine 14KW Slow 40 32
Quick 20 16
Reverse/slow   32
Reverse/quick       16



Double Capstan Cable Winch Puller With 6 Grooves , 240 mm bottom diameter 0

Tag:

cable stringing equipment,

conductor stringing equipment,

wire pulling tools
