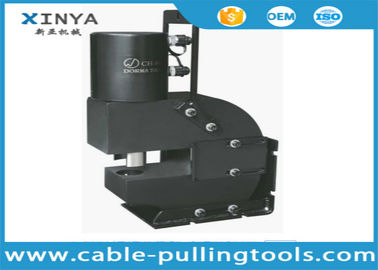

50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump

50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump
50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump 50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump

Large Image :  50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump

Product Details:
Place of Origin: Jiangsu ,China
Brand Name: XINYA
Certification: ISO
Model Number: CH-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD450-600/set
Packaging Details: wood case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 200 sets/month

50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump

Description
Type: Hydraulic Punching Machine Application: Punching
Weight:: 50 Output: 50T
Model Number: CH-80 Depth Of Throat: 115mm
Accessories: 16/18/22/25mm
High Light:

busbar bending machine

,

busbar punching machine

50T Max 16mm Hydraulic Hole Punch Machine With Electric Pump



Model:CH 60

Apeture (mm) 10.5mm ,13.8mm,17.5mm,20.5mm
Output ( T ) 31T
Iron sheet 6mm
Copper busbar 10mm
Throat Depth 95mm
Weight 19-50kg



Modle:CH 70

Punching force 35T
Max thickness of sheet 12mm of copper sheet/ 6 mm of metal sheet
Depth of throat 110mm
Height approx.460mm
Weight approx.34.5kg.
Package carton
Size 390X250X140mm
Accessories 3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm
Note it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A.

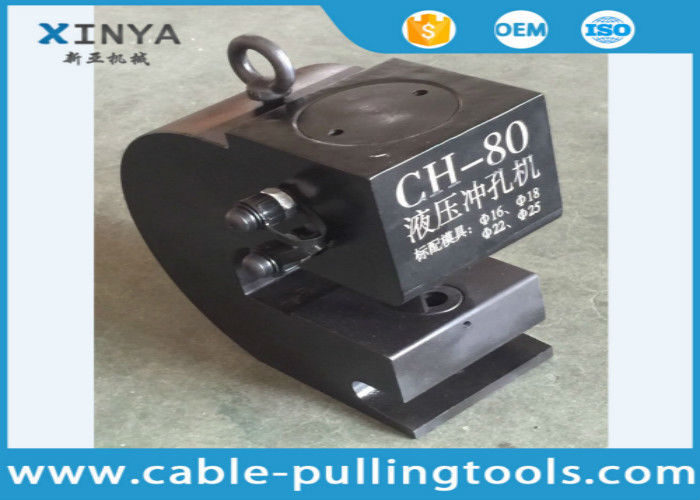

Model:CH 80

Punching Force 50T
Max thickness of sheet 16mm of coppet sheet/14mm of metal sheet
Depth of throat 115mm
Weight approx.30kg
Package wooden case
Size 400*260*160mm
Accessories 16/18/22/25mmmm
Note

It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump.
