Product Details:
|
| Capacity: | 1.6T | Sling Type: | Wire Rope |
|---|---|---|---|
| Lift Speed: | Manual | Application: | Cranes, Construction Hoist |
| Key Word: | Cable Puller | Type: | Hoist Winch |
| Wire Rope Length: | 20M | Product Name: | 1.6T Tirfor Wire Rope Pulling Hoist Wire Rope Winch For Lifting |
| Highlight: | wire pulling tools,conductor stringing equipment,Tirfor Cable Pulling Tools |
||

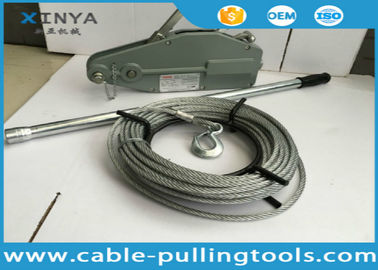

1.6T Tirfor Cable Pulling Tools Wire Rope Winch with steel rope for hoisting
Use and Characteristic
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.
Features
1. Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line of the Yaletrac cable puller.
2. Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load from the Yaletrac cable puller.
3. A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
4. Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
5. The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
6. The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac cable puller is again ready for use.
Technical Data
|
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
|
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
|
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
|
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
|
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
|
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
|
Net weight(KG) |
6.4 |
12 |
28 |
56 |
|
Max outer size(MM) A |
426 |
545 |
660 |
930 |
|
B |
238 |
284 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
|
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
Diagram
