Product Details:
|
| Capacity: | 3.2T | Sling Type: | Wire Rope |
|---|---|---|---|
| Lift Speed: | Manual | Application: | Cranes, Construction Hoist |
| Key Word: | Cable Puller | Type: | Hoist Winch |
| Wire Rope Length: | 20M | Product Name: | 3.2T Tirfor Manual Wire Rope Hoist With 20m Wire Rope For Lifting And Pulling |
| High Light: | cable stringing equipment,conductor stringing equipment |
||

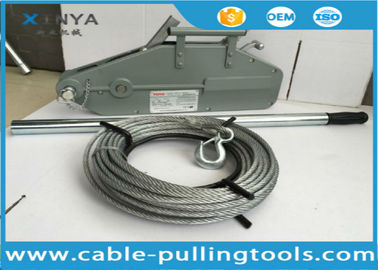

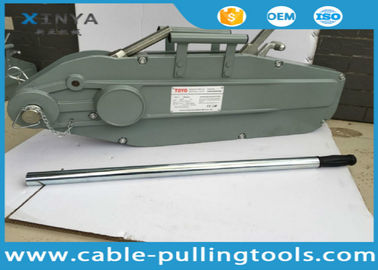

3.2T Tirfor Manual Wire Rope Hoist With 20m Wire Rope for Lifting and Pulling
Detail Introduction
Hand winch is a kind of small-sized, compact, hand-operated lifting tool. It' s features is light weight, compact structrue, wide range of applications and easy maintenance. This type of hoist is suitable to use outdoor sites under advise circumstances.
The housing of the hoist is made of aluminum alloy, thus producing adequate strength, light in weight and making it quite portable, while the component parts inside are made of high quality alloyed steel with advanced technology. Strict quality control test have been carried out on all the component parts. As for the major parts subject to high tension are tested according to ISO standards even with overloading to ensure top quality.
It is a kind of newly designed, uncomplicated structured, convenient-to-use lever hoist with the function of adjusting the beneath-hook quickly, safe and reliable. its new style, beautiful body, good braking performance and high working efficiency enable it to be able to be widely used in factory, mineral, building site, Harbor and transportation areas and so on. It is the ideal equipment for Equipment installation, object fixing, tying and towing, world famous qualified product both home and aboard.
Use and Characteristic
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.
Technical Data
|
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
|
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
|
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
|
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
|
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
|
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
|
Net weight(KG) |
6.4 |
12 |
28 |
56 |
|
Max outer size(MM) A |
426 |
545 |
660 |
930 |
|
B |
238 |
284 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
|
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
Diagram
Established in 1983,registered capital of 5,000,000 RMB,Changshu Xinya Machinery Manufacturing Co.,Ltd.specializes in design,production and sales of electric power construction tools such as 1 ton,2 ton,3 ton,5 ton,8 ton JJM series gasoline engine/diesel engine/electric engine powered winch,tension machine,traction machine;high pressure hydraulic pump;125T&200T hydraulic crimping compressor head;manual pressure pliers;high-strength aluminum alloy wire come along clamp,lifting tackle,wire pulley,cable pulley and so on.We also manufacture various types of large-tonnage forklift mast and a variety of special requirements of non-standard forklift frame.
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.
Founded in 1983, CHANGSHU city power machinery factory.
Since 1983 to 2008,XINYA is focusing on hoisting machinery,mining machinery and forklift parts.
From 2008,XINYA enlarge the manufacturing ability,focusing on cable pulling tools.
In 2013 the company passed ISO9001 certification, and obtain the AAA certificate.
In 2015 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
To now,XINYA has already sell cabe pulling tools to Pakistan, India, Mexico, Turkey, Peru,Brazil, Vietnam,Thailand,Saudi Arabia,Malaysia,Kenya and etc.
We have cooperated with ESCOM,MALAWI,ZESCO,Transelectria,BURHANI(KENYA),BARONS&FUJIKURA and so on.
