Product Details:
|
| Capacity: | 5.4T | Sling Type: | Wire Rope |
|---|---|---|---|
| Lift Speed: | Manual | Application: | Cranes, Construction Hoist |
| Key Word: | Cable Puller | Type: | Hoist Winch |
| Wire Rope Length: | 20M | Product Name: | 5.4T Manual Cable Lifting Hoist Tirfor Hoist For Cable Pulling |
| High Light: | cable stringing equipment,conductor stringing equipment |
||

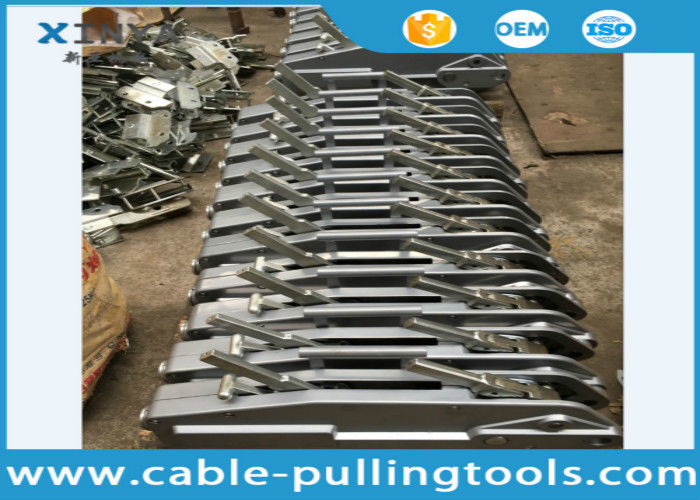

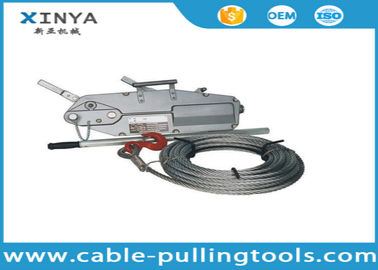

5.4T 20M Cable Pulling Tools Manual Cable Lifting Tirfor Hoist
It are portable manual hoists used with maxiflex wire rope. They can be used to lift, pull and position loads over great distances depending on the wire rope length. They are suitable for use in numerous configurations and are the ideal solution for use in professional applications; they are operated by a simple lever Option: the load capacity of the Tirfor system can be increased by using sheave blocks.
Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths.
1. Low weight—quick installation
2. No limitation in terms of cable length
3. Manageable, light-weight, robust, powerful
4. Increase load capacity with deflection sheaves
5. Overload protection
6. Precise load placement within millimetres
Feature
Universal
It is a hoist, winch, tensioner, binder, ratchet – and much more
Portable
It has the lowest weight to capacity ratio of any hoist or winch with comparable capacities
Unique
It’s unique wire rope gripping system provides unlimited pulling length or lifting height and pinpoint accuracy in positioning any work load
Unmatched safety
It is simply designed and ruggedly constructed with the finest alloy heat-treated steel. The load is automatically held securely, with a large overload margin of safety
Indispensable
for all construction and maintenance jobs. It is used daily by millions of people all over the world
Use and Characteristic
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.
Technical Data
|
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
|
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
|
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
|
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
|
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
|
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
|
Net weight(KG) |
6.4 |
12 |
28 |
56 |
|
Max outer size(MM) A |
426 |
545 |
660 |
930 |
|
B |
238 |
284 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
|
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
Diagram
