Product Details:
|
| Max Payload: | 8T | Application: | Cable Transportation |
|---|---|---|---|
| Usage: | Cable Stringing | Weight(kg): | 2300 |
| Max Coil Diameter(mm): | 3300 | Type: | Cable Drum Trailer |
| Name: | Cable Push Pull Tools 8 Ton Cable Drum Vehicle Cable Reel Trailer | ||
| Highlight: | cable laying equipment,cable drum trailer |
||

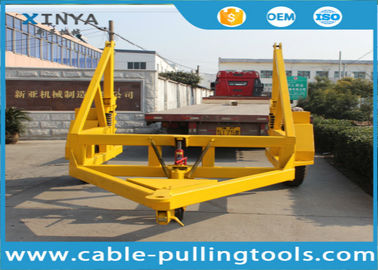

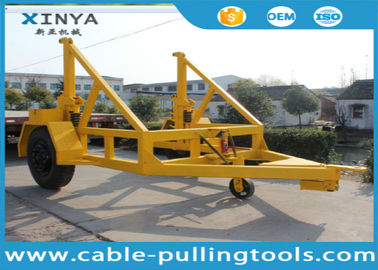

Cable Push Pull Tools 8 Ton Cable Drum Vehicle Cable Reel Trailer
Brief Introduction
This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling,
cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively
only by moving clutch. With compact design and flexible steering function, it can be operated under narrow
work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.
Technical Data
| Model | Max coil diameter | Wide | Length | Wide | High | ||
| (T) | (kg) | mm | mm | mm | mm | mm | |
| LZ-3T | 3T | 900 | 2300 | 1250 | 3800 | 2300 | 2200 |
| LZ-5T | 5T | 1500 | 2800 | 1450 | 4000 | 2600 | 2500 |
| LZ-8T | 8T | 2300 | 3300 | 1750 | 4300 | 3200 | 2700 |
| LZ-10T | 10T | 2800 | 3500 | 1850 | 4300 | 3400 | 2800 |
Drawing
