Product Details:
|
| Application: | Stringing Pulley During Transmission Line | Wheel Size: | 660mm Diameter/100mm Width |
|---|---|---|---|
| Usage: | Stringing | Type: | Stringing Pulley Block |
| Material: | Nylon | Selling Point: | Large Diameter |
| Conductor Size (mm2): | ≤500 | Rated Load (kN): | 40 |

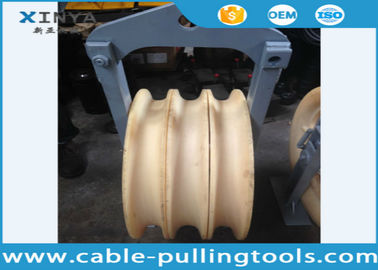

| Weight (kg): | 85 | Product Name: | 3 Sheave 660mm Diameter Stringing Pulley Block For Pilot Wire Rope |
| Highlight: | wire rope pulley block,cable hoist puller |
||
Quick details
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 100mm

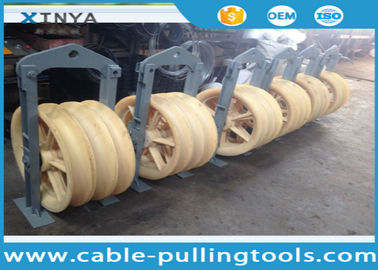

4. Three Wheels Nylon Wheels Galvanized Steel Frame
5. With Rubber Covered or Without
Application and Features
It is used to release the wire in the overhead transmission line.
And it can be used for single conductor, double split wire, four split wire, six split wire and so on.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Applicable Conductor ACSR(mm2) | Weight(kg) | Sheave No. | Outside Dia*Groove Dia* Sheave Width(mm) |
| 80317 | SHDN-660*100 | 20 | ≤500 | 20 | 1 | Φ660*Φ560*100 |
| 80320 | SHSQN-660*100 | 40 | 85 | 3 | ||
| 80321 | SHWQN-660*100 | 60 | 110 | 5 |
