5T Wire Rope HONDA Gasoline Winch Tower Erection Tools

5T Wire Rope HONDA Gasoline Winch Tower Erection Tools
5T Wire Rope HONDA Gasoline Winch Tower Erection Tools 5T Wire Rope HONDA Gasoline Winch Tower Erection Tools

Large Image :  5T Wire Rope HONDA Gasoline Winch Tower Erection Tools

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: BV, ISO
Model Number: JJM-5SQ
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: US $2,500 - 3,200 / Set
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Set/Sets per Month

5T Wire Rope HONDA Gasoline Winch Tower Erection Tools

Description
Power Source: Honda Gasoline Engine GX390 13HP Sling Type: Wire Rope
Maximum Lifting Weight: 50kn Maximum Lifting Height: 10m
Lift Speed: 26m/min Warranty: 12 Months
MOQ: 2 Sets Weight(kg): 200
Dimension(mm): 1000*670*600 Product Name: 5T Wire Rope HONDA Gasoline Winch With Double Capstan For Cable Pulling
Selling Point: Double Capstan,7 Grooves
High Light:

gin poles

,

steel erection tools

5T Wire Rope HONDA Gasoline Winch With Double Capstan For Cable Pulling



Quick Details

1.Model:JJM5SQ

2.Engine:Honda gasoline GX390

3.Weight:290kg

4.Lead TimeL10 days after deposite

5.Payment:TT,LC



Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan

into straight even cylindrical shape and coming with steel rope.

Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up

the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.



Technical Data

Model Type Overall Size(mm) Weight(kg) Power Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5SQ 1330*800*600 290 GX390,13HP Gasoline Engine Slow I 50 6
SLOW II 30 10
Quick I 13 23
Quick II 10 30
Reverse/slow No Lifting 5
Reverse/quick No Lifting 17

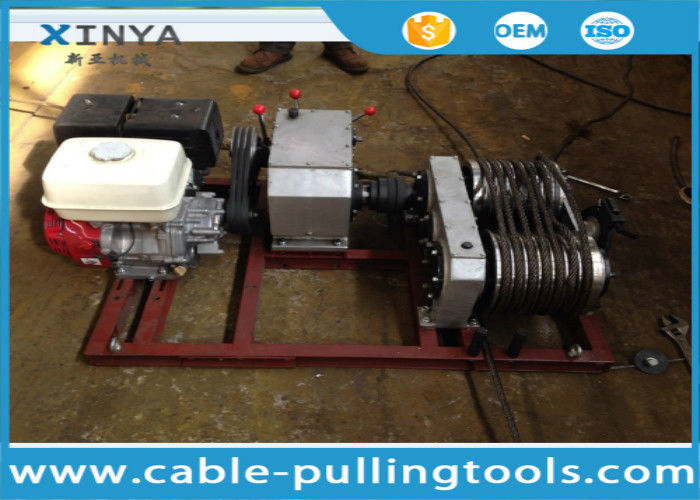

5T Wire Rope HONDA Gasoline Winch Tower Erection Tools 0

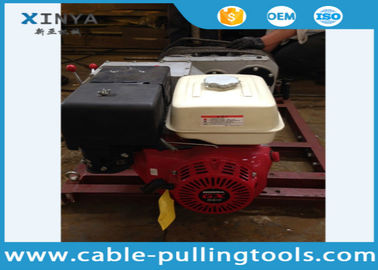

5T Wire Rope HONDA Gasoline Winch Tower Erection Tools 1
