Product Details:
|
| Application: | Power Construction | Test Load(KN): | 1.65 |
|---|---|---|---|
| Rated Load(KN): | 1.00 | Weight(kg): | 3.0-3.5 |
| Type: | Pole Climber | Usage: | Wood Pole Climber |
| Name: | HT350 Pole Climber For Climbing 12m Wood Pole Made In High Strength Steel | Open: | Max 350mm |
| Outer Diameter Of Cement Rod(mm): | 250-350 | ||
| High Light: | safety tools for construction,protective tools |
||

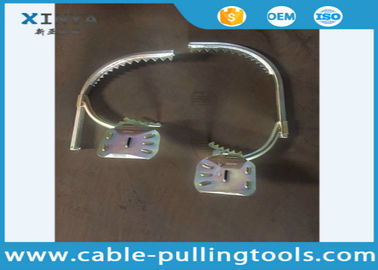

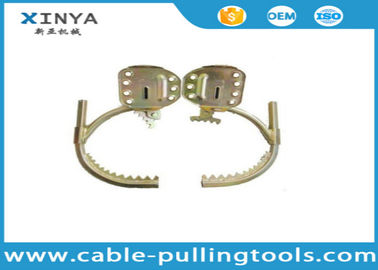

JKTM350 Pole Climber For Climbing 12m Wood Pole Made in High Strength Steel with spikes
Production assurance description
1. Our climbers are produced according to local standard design and organizations ,
we will responsible for all quality problem for half year if the products are under normal use.
2. The following conditions are not in the scope of quality assurance:
Deformation caused by stressing application not according to the stated testing load.
Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
3. storage,The climbers should be stored in the well ventilated place and you should keep it from corrosion.
Technical Data
|
Model |
JK-T-M350 |
|
The biggest opening distance(mm) |
350 |
|
Weight (kg) |
3.0-3.5 |
|
Outer diameter of cement rod(mm) |
Φ250-Φ350 |
|
Rated load(KN) |
1.00 |
|
Testing load(KN) |
1.65 |
|
Overload(KN) |
2.25 |
|
Testing time(min) |
5 |
|
Remarks |
For 10-12m wood pole |
Manual Operation
