Product Details:
|
| Application: | Construction | Material: | Galvanized Steel Wire |
|---|---|---|---|
| Diameter: | 11mm | Item: | High Strength Anti-twisting Braided Steel Wire Rope 11mm Galvanized |
| Structure: | Hexagon With 12 Strands | Breaking Load: | 80KN |
| Standard Length: | 1000m | Type: | Galvanized Anti Twist Wire Rope |
| Highlight: | rotation resistant wire rope,non rotating wire rope |
||

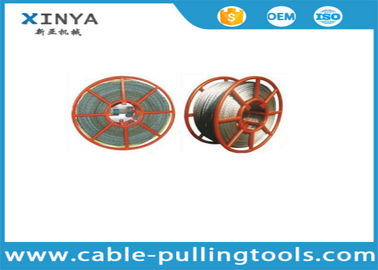

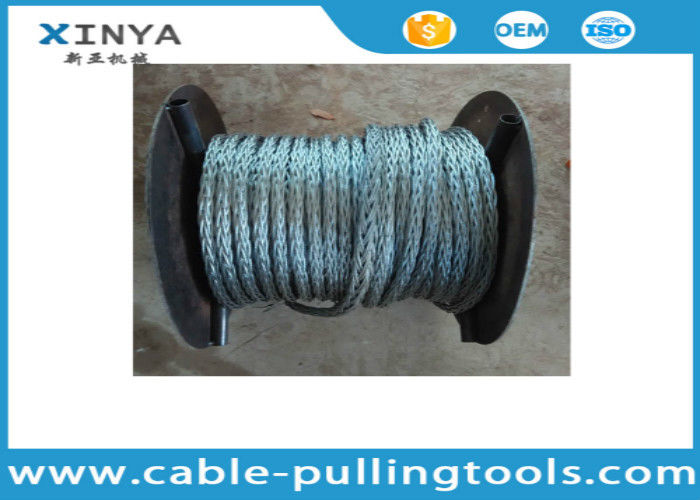

High Strength Anti-twisting Braided Steel Wire Rope 11mm Galvanized
Quick details:
Usage : Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.
Feature: Braided 1960 Mpa high-strength galvanized steel wire .rotation resistance during pulling .
The specification and length of the steel wire rope can be customized according to your request.
Technical Data
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
