Product Details:
|
| Type: | Tractor Winch | Item: | Tractor Type 5 Ton Diesel Cable Pulling Winch With Two Wheels During Tower Erection |
|---|---|---|---|
| Usage: | Hositing;pulling | Rated Loading Capacity: | 5 Ton |
| Warranty: | One Year | Max Pulling Force(KN): | 50 |
| Max Pulling Speed(m/min): | 37 | Application: | Power Construction; |
| MOQ: | One Set | Dimension(mm): | 2670*1040*1300 |
| Engine: | Water Cooled Diesel Engine | ||
| High Light: | wire pulling tools,conductor stringing equipment,Tractor Type Wire Pulling Winch |
||

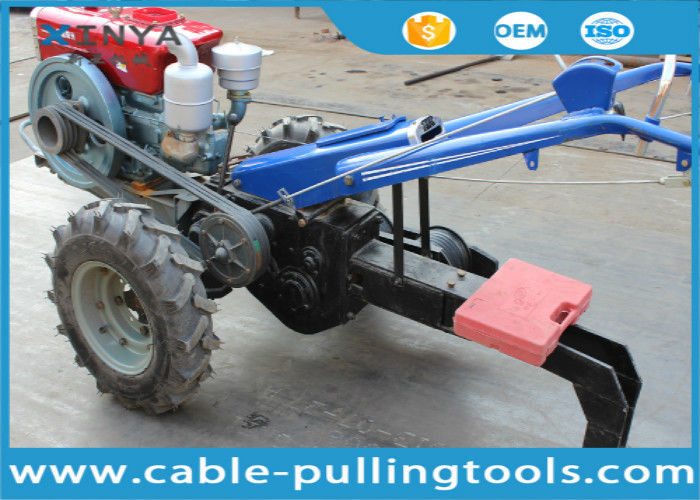

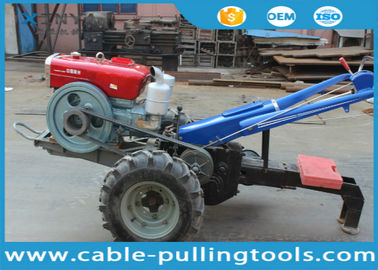

Tractor Type 5 Ton Diesel Cable Pulling Winch With Two Wheels During Tower Erection
Application
Apply to cable pulling during overhead line transmission and hoisting,lifting cargo.
Features
1) four gear,forward gear and reverse gear.2) speedy and convenient.3) high quality.4) easy operation.5) Reliable
Technical Data
| Model Type | Overall Size(mm) | Weight(kg) | Power | Gear | Pulling Force(KN) | Pulling Speed(m/min) |
| JMJ-5 | 2670*1040*1300 | 600 | Dongfeng Type 12 walking tractor | Slow | 50 | 5 |
| Mid | 27 | 8 | ||||
| Mid | 17 | 18 | ||||
| Quick | 10 | 24 |
