Product Details:
|
| Application: | Cable Pulling,hoisting,lifting | Capacity: | 30 KN |
|---|---|---|---|
| Max Load: | 3ton | Maximum Pulling Speed: | 7m/min |
| Engine: | Diesel Engine | Power: | 4HP |
| Weight(kg): | 150 | Size(mm): | 1000*680*550 |
| Name: | 3 Ton Diesel Cable Pulling Winch For Stringing ABC Cable | Type: | Cable Pulling Winch |
| Highlight: | cable stringing equipment,wire pulling tools,Diesel Engine Cable Pulling Winch |
||

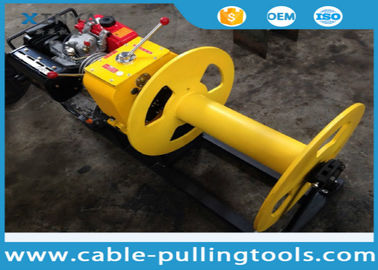

3 Ton Diesel Engine Cable Pulling Winch for Stringing ABC Cable
Application
It is used for tower erection,pole setting,stringingwire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Test Before Delivery
Different Types of Winches
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 |
HONDA Petrol engine(6HP)or Homemade Petrol engine |
(Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 |
YAMAHA Petrol engine (9HP) or Homemade Gasoline engine |
(Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 |
HONDA Petrol engine or homemade petrol engine 13HP |
(Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
