Product Details:
|
| Application: | Stringing Pulley During Transmission Line | Wheel Size: | 660mm Diameter/100mm Width |
|---|---|---|---|
| Usage: | Stringing | Type: | Stringing Pulley Block |
| Material: | Nylon | Selling Point: | Large Diameter |
| Conductor Size (mm2): | ≤500 | Rated Load (kN): | 60 |

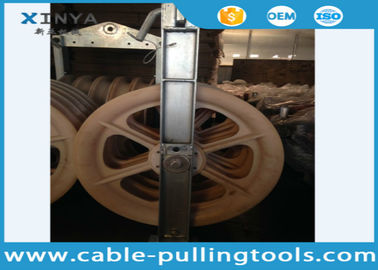

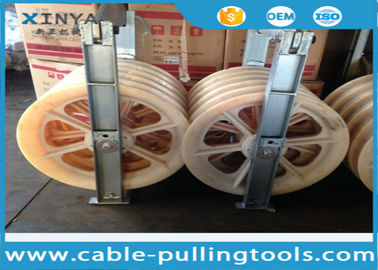

| Weight (kg): | 110 | Product Name: | Large Diameter Bundled Conductor Pulley Stringing Block With Five Nylon Wheel 660mm |
| Bottom Diameter(mm): | 560 | ||
| Highlight: | block and tackle hoist,wire rope pulley block |
||
Uses: Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
|
Item No. |
Model No. |
Sheave Number |
Rate Load (KN) |
Unit Weight (KG) |
Sheave Features |
|
0363 |
SHD660 |
Single |
20 |
30 |
Aluminum wheel with rubber liner |
|
0364 |
SHDN660 |
Single |
20 |
24 |
MC nylon wheel |
|
0365 |
SHSLN660 |
Three |
40 |
92 |
Middle:MC nylon wheel Conductor: Aluminum wheel with rubber liner |
|
0366 |
SHWLN660 |
Five |
60 |
120 |
|
|
0367 |
SHSQN660 |
Three |
40 |
76 |
MC nylon wheel |
|
0368 |
SHWQN660 |
Five |
60 |
110 |
Note:
1.Max applicable conductor is ACSR500.
2.Sheave diameter(external diamter x groove diameter x width) is Ф660 x Ф560 x 100 mm.
