Product Details:
|
| Pressure: | High Pressure | Voltage: | 380V |
|---|---|---|---|
| Application: | Supply Power | Power: | 3KW |
| Frequency: | 50 Hz | Product Name: | 380V High Pressure Fast Speed Electric Hydraulic Pump For Power Supply |
| Item: | Electric Hydraulic Pump | Usage: | Power Supplye |
| High Pressure Flow: | 2.05L/min | Lower Pressure Flow: | 11.02L/min |
| High Light: | block and tackle hoist,cable hoist puller |
||

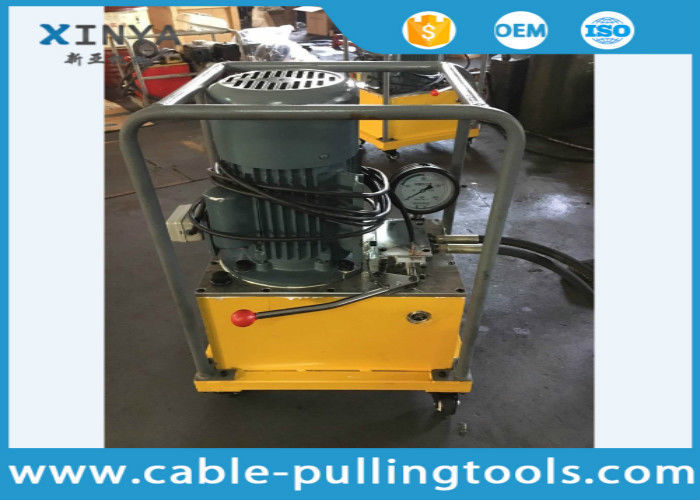

380V High Pressure Fast Speed Electric Hydraulic Pump for Power Supply
Use and Characteristics
It is used to provide pressurized oil to compatible tools: Cylinder, Crimping Head, Cutting Head, Busbar punching bending cutting tools, pipe bender etc.
Technical specification below for your reference:
| Model | Engine | Power | Rated Pressure(Mpa) | Max Pressure(Mpa) | Rated Flow(L/min) | Weight | |
| High Pressure | Low Pressure | ||||||

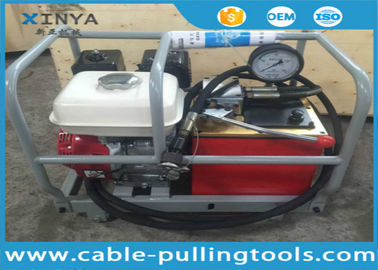

| YA-80-03 | Honda GX160 | 5.5HP | 80 | 94 | 2.05 | 11.02 | 56KG |
| YA-80-03 | Diesel Engine | 4.0HP | 80 | 94 | 2.05 | 11.02 | 65KG |
| YA-80-03 | Electric Engine | 3.0KW | 80 | 94 | 1.60 | 8.00 | 45KG |
Customer Visiting
FAQ
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
