Product Details:
|
| Product Name: | Inspection Trolleys And Overhead Lines Bicycles For Single Conductor | Application: | Overhead Power Line |
|---|---|---|---|
| Usage: | Mount Accessories Overhead | Rated Load: | 1KN |
| Max Through Diameter: | 40mm | Diameter Of Wheel: | 160mm |
| Weight: | 34kg | ||
| Highlight: | block and tackle hoist,wire rope pulley block |
||

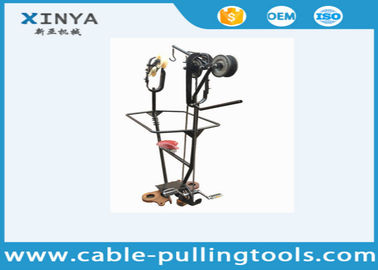

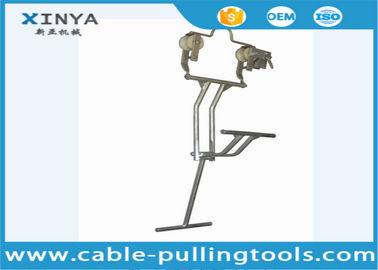

Inspection Trolleys and Overhead Lines Bicycles for Single Conductor
| Item number | Model | Rated Load(KN) | Diameter of wheel(mm) | Maximum through diameter(mm) | Weight(kg) |
| 17261 | SFD1A | 1 | Ф55 | Ф25 | 7 |
| 17262 | SFD1B | 1 | Ф80 | Ф40 | 7 |
| 17263 | SFD3 | 1 | Ф160 | Ф40 | 34 |
Uses
To install accessories and inspection on single conductor.SFD1A is used for telecommunication cable.
Notes
Should Confirm the distance between conductors before proceeding production.
Application
