Product Details:
|
| Rated Load: | 10KN | Weight: | 5KG |
|---|---|---|---|
| Item: | Straight Line Cable Roller | Application: | Cable Laying |
| Type: | Cable Roller | Wheel: | Aluminum |
| Highlight: | cable laying equipment,cable tower machine |
||

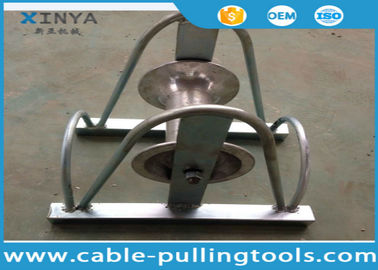

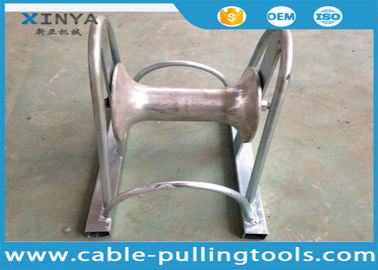

Underground Cable Tools Straight Line Cable Roller Zinc Plated With Aluminum Rollers
Introduction
Cable pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches . Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Features
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.
2. The cable pulley is used to support conductors, OPGW,ADSS, communication lines
3. The cable pulley is made from high strength MC nylon, aluminum, the frame are made of galvanized steel.
4. High strength and flexibility, easy to use, light weight, wearresisting, and long service life.
Advantages
1. Usage: For delivery of underground cables, used in extended release cable for high- speed single round of linear wheel bearings are not to hurt the cable wheel material steel aluminum cattle dragon can be based on your need to select.
2. The cable pulley can be installed on a different cable.
3. Pulley material classification: a steel pulley with spherical bearings, the second nylon wheel with plain bearings,aluminum alloy wheel with sliding bearings.
Application
Cable Rollers:For cables up to diameter 150mm.
| Cat. No. | Rated Load (kN) | Construction | Weight (kg) |
| CR0110 | 10 | Cast aluminum frame, aluminum (nylon) roller | 5.4/3.6 |
| CR0111 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.5/3.1 |
| CR0112 | 10 | Steel tubing, long legs, aluminum (nylon) roller | 5.8/4.2 |
| CR0113 | 10 | Steel plate base, aluminum (nylon) roller | 5.5/3.7 |
| CR0114 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
| CR0115 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
Corner Roller:Frames of corner rollers are linked together with stake pins to form a suitable bend to guide cables around the corner. (In the right pictures, three corner rollers are linked together)
| Cat. No. | Rated Load (kN) | Max. Cable Dia. (mm) | Weight (kg) |
| CR0116 | 10 | 150 | 11 |
| CR0117 | 10 | 150 | 15 |
Manhole Rollers:Mounted on the verge of manhole to protect cables and pulling ropes.
| Cat. No. | Rated Load (kN) | Weight (kg) |
| CR0118 | 10 | 10.8 |
Multi-Roller:Used to protect the cable when it enter or run out of a manhole. Easy to use.
| Cat. No. | Rated Load (kN) | Weight (kg) |
| CR0120 | 10 | 10.8 |
Multi-Roller:Used to protect the cable when it enter or run out of a manhole. Easy to use.
| Cat. No. | Rated Load (kN) | Weight (kg) |
| CR0125 | 80 | 3.3 |
| CR0126 | 90 | 3.5 |
| CR0127 | 100 | 3.8 |
| CR0128 | 130 | 6 |
| CR0129 | 150 | 7.2 |
