| Brand Name: | XINYA |
| Model Number: | CH-70 |
| MOQ: | 2 sets |
| Price: | Negotiable |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T, |

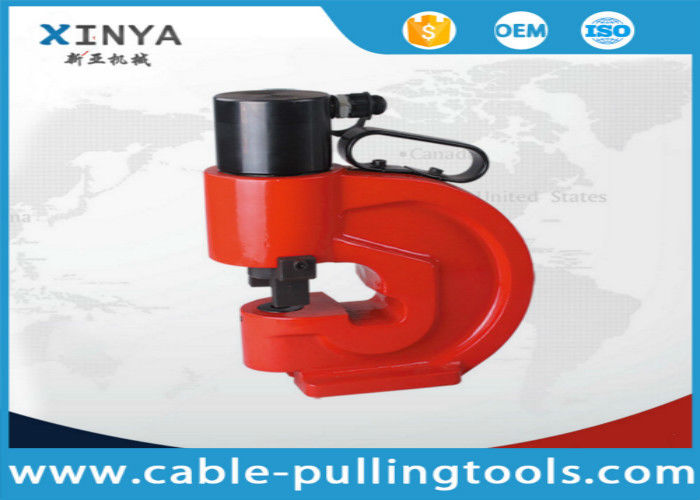

Hydraulic Cooper Bus Bar Swaging Punching Tool Metal Hole Punch CH-70
Tools Feature

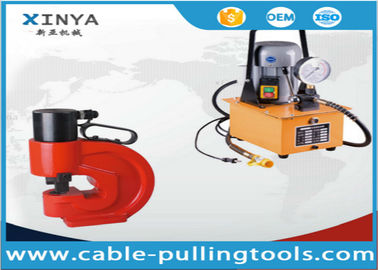

1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range.
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Steel Case Package: Protect Tools well
Tools Specification
1. Application: Punch Round Holes on Cu/Al Busbar
2. Punching Capacity: Dia. 10.5mm-Dia. 20.5mm
3. Busbar Thickness: Below or equivalent to 12mm
4. Output: 35T
5. Throat Depth: 110mm
6. Weight: 28kg
7. Size: 370*240*150mm
8. Package: Steel Case
Technology Parameters
| Model | CH-60 | CH-70 | CH-80 |
| Output | 31T | 35T | 50T |
| Thickness iron | 6mm | 10mm | 16mm |
| Thickness copper | 10mm | 12mm | 20mm |
| Throat Depth | 95mm | 110mm | 115mm |
| Weight | 19kg | 38kg | 50kg |
| Model(mm) | 10.5,13.8,17.5,20.5 | 10.5,13.8,17.5,20.5 | 16,18,22,25 |
| Size(mm) | 350*245*110 | 370*240*150 | 400*260*160 |
