CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher

CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher
CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher
CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher

Large Image :  CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher

Product Details:
Place of Origin: Jiangsu ,China
Brand Name: XINYA
Certification: ISO
Model Number: CH-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: wood case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 200 sets/month

CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher

Description
Type: Hydraulic Hole Puncher Application: Hole Punch
Weight: 19kg Output: 31T
Throat Depth: 95mm Model(mm): 10.5,13.8,17.5,20.5
Highlight:

busbar bending machine

,

busbar punching machine

CH-60 Punching 10mm Copper 6mm Metal Sheet Metal Hole Punch Hydraulic Puncher



Product Description

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Features:

1 Hydraulic hole puncher is designed for punching holes on Cu/AI bus bar

2 Punching the different kind metal sheet up to 10mm.

3 This type of hydraulic hole puncher can match up hand pump CP-700/ CFP-800-1 or electric pump..



Technical Parameter
Type Output Thickness iron Thickness copper Throat Depth Weight Model(mm)
CH-60 31T 6mm 10mm 95mm 19kg 10.5,13.8,17.5,20.5
HW-70 35T 10mm 12mm 110mm 38kg 10.5,13.8,17.5,20.5
CH -80 50T 16mm 20mm 115mm 50kg 16,18,22,25

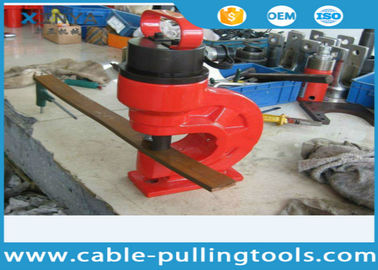

CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher 0

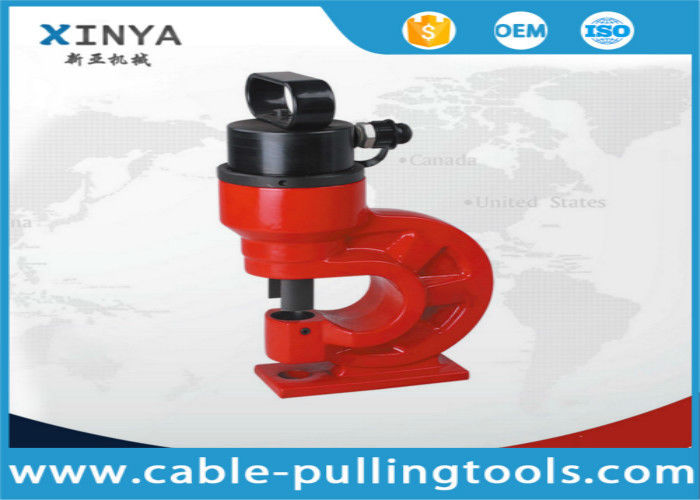

CH-60 Punching 10mm Copper 6mm Metal Sheet Hole Punch Hydraulic Puncher 1
