FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier

FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier
FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier

Large Image :  FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: FYQ-630
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: export standard plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/week

FYQ-630 Hydraulic Crimping Tools 50T Cable Lug Hexagon Hydraulic Crimping Plier

Description
Press-jointrange(mm2): 150-630mm² Max Pressure (T): 50
Application: Power Construction Max Travel (mm): 25

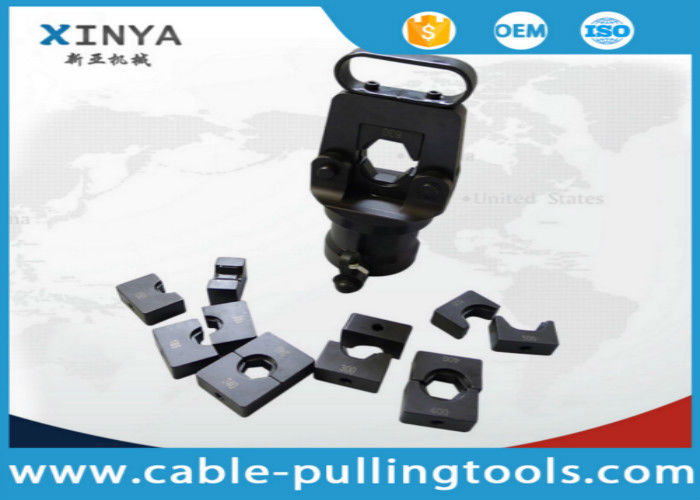

Type: Cable Lug Hydraulic Crimping Plier Mould: 150,185,240,300,400,500,630sqmm
High Light:

hydraulic cable crimping tool

,

hydraulic crimp tool

Hydraulic Crimping Tools FYQ-630 Cable Lug Hydraulic Crimping Plier





Selection and use methods:

Firstly measure the external diameter of hard fittings,which is equal to press mould"A"dimension in principle,please choose applicable press mould from serial number table of common press mould according to external diameter of hardware

fittings and tool model.For example,YD-240/30 connection pipes,when steel bushing external diameter is 20mm,external

diameter of aluminum bushing pipe is 36mm and hydrostatic machine with 100 tons of discharging force is considered as a tool,it isadvisable to selection and use 100-G20 steel mould and 100-L36 for pressing purpose.



Function description:

It is specially made of high carbon steel raw material by means of CNC processing,with good quality and high tension

stress.Compression ratio of mould can be calculated according to the pressed objects;Single circuit can be furnished with

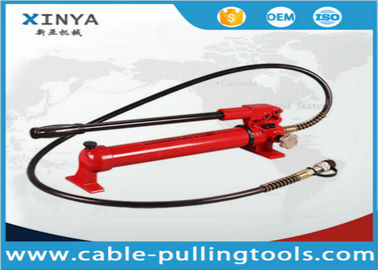

single circuit pump and double circuits can be furnished with double cicuits pump;In time of outdoor construction,engine

electric generator or engine pump can be furnished to make construction conducted in a quickest and safe way for only

8-12 seconds each time.Hardware fittings are manufactured in accordance with state standard and CNC linear cutting

dimension standard with precise accuracy degree.

1.Suitable for use in indoor&outdoor power transmission and distributionprojects.
2.Ddsigned for high voltge cablecouduits(10KV-500KV),wire holders.
3.Welcome to order special special specification tools.



Model
FYQ-630
Crimping range
150-630mm²
Crimping force
50T
Stroke
25mm
Accessories
150,185,240,300,400,500,630mm
Weight
15kg
Package
Wooden box
Crimping type
Hexagon crimping
