Product Details:
|
| Wheel Bottom Diameter (MM): | 75 | Applicable Wire Type: | 6-38mm Conductor Wire |
|---|---|---|---|
| Max Current (A): | 100 | Wheel Material: | Aluminum |
| Unit Weight (KG): | 4.5 | Item: | Grounding Pulley Block |
| Highlight: | block and tackle hoist,wire rope pulley block |
||

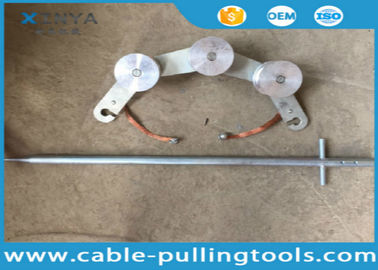

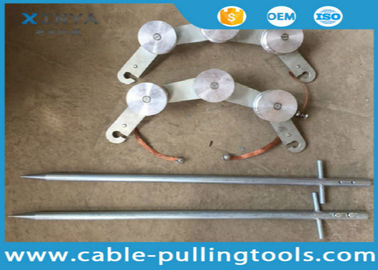

Aluminum Alloy SHL75D Hook Grounding Pulley Block , 6-38mm Conductor Wire
Description
This hook grounding block can remove the induced electricity from the conductor or earth wire during the stringing operation. When in use, it can be mounted on the outlet side of tensioner or the inlet side of puller, and then pulled by two stay wires.
Our hook grounding block is designed with triple sheave mechanism, which is automatically compacted by the torsion spring. The maximum allowable current reaches 100A, and the transit time is only 0.1 second. The recommended sectional area of the supporting earth wire is 25mm2.
Data Sheet
|
Item No.
|
Model No.
|
Wheel Bottom Diameter
(MM)
|
Applicable Range
(MM)
|
Wheel Material
|
Unit Weight
(KG)
|
|
0451
|
SHL75D
|
75
|
6~38 Conductor
|
Aluminum Alloy
|
4.5
|
|
0452
|
SHG60D
|
60
|
6~28 Steel wire rope
|
Steel
|
5.0
|
Uses: Apply to eliminating the faradism in conductor and grounding wire.
Specification:
1. It is mounted on the outlet side of tensioner and inlet side of puller, and held by two stay wires.
2. Tri-Sheave mechanism compacted automatically by torsional spring.
3. Maximum allowable current is 100A, time electrified is 0.1 second.
4. Section of matching grounding wire is recommended as 25mm2.
Founded in 1983, CHANGSHU city power machinery factory.
Since 1983 to 2008,XINYA is focusing on hoisting machinery,mining machinery and forklift parts.
From 2008,XINYA enlarge the manufacturing ability,focusing on cable pulling tools.
In 2013 the company passed ISO9001 certification, and obtain the AAA certificate.
In 2015 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
To now,XINYA has already sell cabe pulling tools to Pakistan, India, Mexico, Turkey, Peru,Brazil, Vietnam,Thailand,Saudi Arabia,Malaysia,Kenya and etc.
We have cooperated with Malawi Escom,Kenya Burhani,Barons & Fujikura,ZESCO,SEASHORE HYDRAULIC CENTER and so on.
