Product Details:
|
| Rated Load: | 6 T | Weight: | 24 Kg |
|---|---|---|---|
| Height: | 1.5 M | Usage: | Construction Hoist |
| Speed: | Various Selection | Item: | Basic Construction Tools Lever Hoist |
| MOQ: | 10 Sets | Warranty: | 1 Year |
| High Light: | construction hand tools,building construction tools |
||

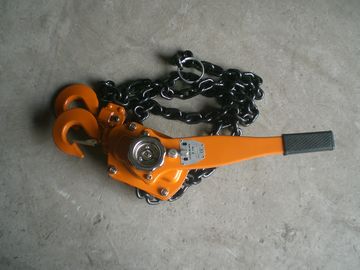

Capacity 6 ton lever hoist lifting height 1.5m chain dia 10mm
Introduction
1. Hook:made of high-class alloy steel,it has high strength and high security.
2. Components:main components are all made of high-class alloy steel,with high precision and security.
3. Framework: slight design and more beautiful; with less weight and smaller work area.
4. Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
5. Encloser made of high-classed steel,more firmly and dexterous.
Application
It is for the lifting of objects and mechanical traction, tightening steel wire, aluminum wire .
Technical Data
| Model | 0.75ton | 1.5ton | 3ton | 6ton | |
| Capacity(t) | 0.75 | 1.5 | 3 | 6 | |
| Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test Load(t) | 9.2 | 18.4 | 36.8 | 73.5 | |
| Effort required to lift max load(N) | 148 | 216 | 336 | 345 | |
| Chain diameter(mm) | 6.3 | 7.1 | 9 | 9 | |
| Net Weight(kg) | 6.6 | 11.65 | 21.1 | 23.7 | |
| Dimensions(mm) | A | 155 | 170 | 198 | 198 |
| B | 128 | 147 | 182 | 230 | |
| C | 310 | 350 | 470 | 590 | |
| D | 240 | 365 | 365 | 365 | |
| G | 28 | 36 | 47 | 49 | |
