Product Details:
|
| Material: | Galvanized,Stainless Steel 304,or Stainless Steel 316. | Strength (KG): | 200KG-20000KG |
|---|---|---|---|

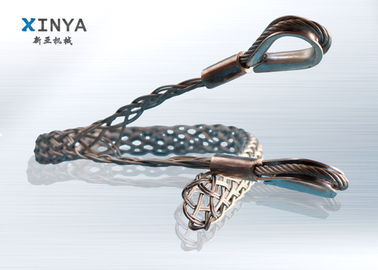

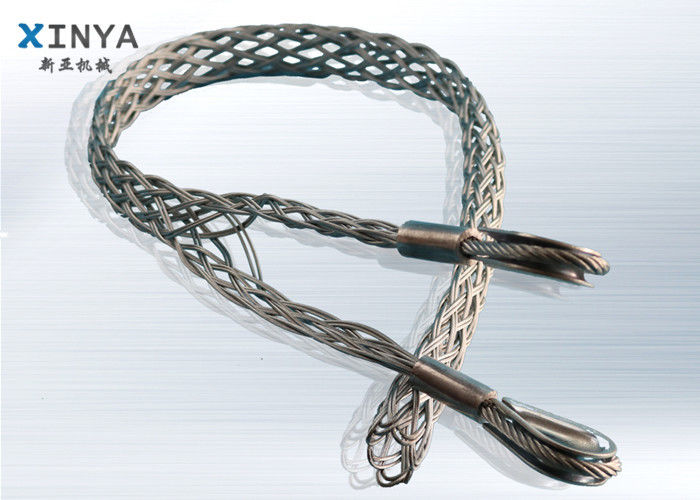

| Mesh Length: | 140mm-2000mm,or As Your Request | Name: | Heavy Load Steel Wire Rope Double Side Dragging Cable Mesh Grip |
| Application: | Cable Protection | Feature: | Double Sides Dragging |
| High Light: | wire rope clip,fiber optic cable stripping tool,Double Side Dragging Cable Mesh Grip |
||
Cable grips(also known as:cable nets,intermediate nets,wire nets,cable nets,power nets,cable nets,fiber nets, ground nets)
1.with flexibility ,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easily,will not hurt the cable,durable.
2.using Swedish ALURIT hydraulic press to press at the pressure point of cable nets,smooth appearance,large tensile load strength.
3.the material can be hot dip galvanized high strength steel wire rope ,304,316 or 316L.Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.
Single Eye Rod Closing Support Cable Grips
Cable mesh grips features:
1. Flexibility, moderate softness, high elasticity, wear resistance, corrosion resistance, closedly mesh.
2. The cable can easily set into the open mouth, passing the bend easily, will not hurt the cable.
3. Cable mesh grip is mesh structure, more drawing and more tightly.
4. Using Swedish ALURIT hydraulic press to press at the pressure point of cable nets, smooth apperance, large tensile load strenth.
5. Material can be hot dipped galvanized steel, stainless steel.
6. Cable grip using composite weaving method of single strand, double strand, three strands or multi-strand multilayer.
Double Sides Dragging Cable Grip Specifications
| Model |
Size Range (mm) |
Mesh Length (mm) |
Total Length (mm) |
Breaking (KN) |
Strength (KG) |
| WTG-6 | 4-6 | 400 | 550 | 5.88 | 600 |
| WTG-8 | 6-9 | 500 | 650 | 5.88 | 600 |
| WTG-10 | 9-12 | 500 | 700 | 8.82 | 900 |
| WTG-16 | 13-18 | 600 | 800 | 29.4 | 3000 |
| WTG-20 | 16-21 | 800 | 1000 | 39.2 | 4000 |
| WTG-25 | 22-28 | 1100 | 1300 | 68.6 | 7000 |
| WTG-30 | 29-36 | 1200 | 1420 | 68.6 | 7000 |
| WTG-40 | 37-45 | 1300 | 1550 | 98 | 10000 |
| WTG-50 | 45-55 | 1400 | 1650 | 117.6 | 12000 |
| WTG-60 | 56-68 | 1550 | 1900 | 117.6 | 12000 |
| WTG-75 | 69-80 | 1650 | 2080 | 117.6 | 12000 |
| WTG-90 | 80-95 | 1750 | 2150 | 147 | 15000 |
| WTG-115 | 88-101 | 1800 | 2220 | 176.6 | 18000 |
| WTG-130 | 101-114 | 1900 | 2350 | 176.4 | 18000 |
| WTG-155 | 155-127 | 2100 | 2560 | 196 | 20000 |
| WTG-180 | 124-152 | 2200 | 2680 | 196 | 20000 |
| WTG-220 | 153-180 | 2300 | 2780 | 196 | 20000 |
| WTG-230 | 180-230 | 2400 | 2700 | 196 | 20000 |
| WTG-280 | 230-280 | 2550 | 2850 | 196 | 20000 |
| WTG-320 | 280-320 | 2700 | 2950 | 196 | 20000 |
Cable laying applications
1. Cable/wire pushing or pulling 2. Cable/wire protecting
3. Cable/wire changigng 3. Cable/wire dragging
