Product Details:
|
| Traction: | ＞300KG | Pulling Speed: | 1m -1.6 M/s |
|---|---|---|---|
| Outlet Opening Size: | 5mm*45mm | Belt Size: | 1000m*60mm |
| Engine Gasoline Tank: | 4L,(92#,93#Gasoline) | Total Power: | 4.3KW |
| Highlight: | wire rope clip,fiber optic cable stripping tool,1.6 m/s Fiber Optic Cable Tools |
||
Product Description

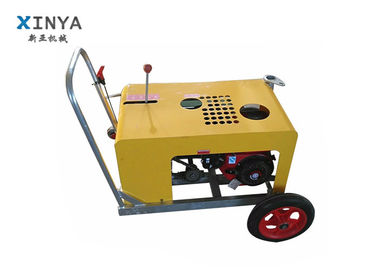

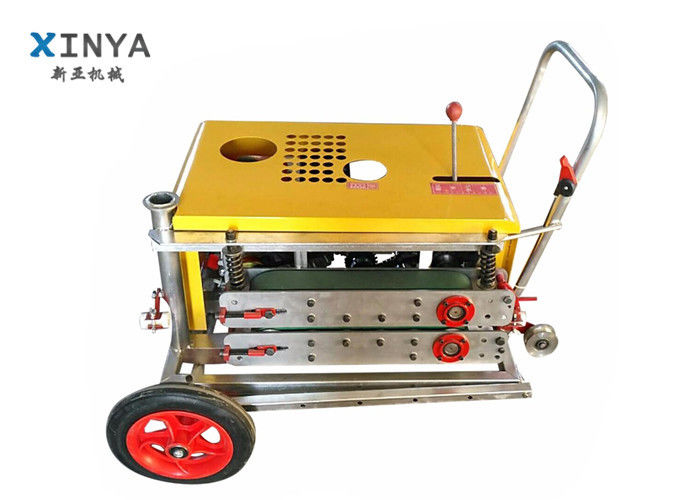

Cable Hauling Machine is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save man power and material greatly and reduce construction cost effectively.
Product Display
Specification
Quick Detail of Cable Hauling Machine:
|
Traction |
＞300KG |
|
Pulling Speed |
1m -1.6 m/s |
|
Outlet opening size |
5mm*45mm |
|
Belt Size |
1000m*60mm |
|
Engine Gasoline Tank |
4L,(92#,93#Gasoline) |
|
Total Power |
4.3KW |
|
Machine Size |
80*60*80cm |
|
Machine Weight |
90KG |
|
Line Bracket Dimension |
Out diamerer:110cm Inner Diameter:85cm |
|
Suitable Diameter Of Cable |
Cable wire rope,Cable steel |
Part of Cable Hauling Machine details:
Application
Cable Hauling Machine widely used,can replace the artificial pull, the speed is quick, does not injure the cable.
