Product Details:
|
| Material: | Galvanized,Stainless Steel 304,or Stainless Steel 316. | Breaking Load: | 580-20000kg |
|---|---|---|---|
| Mesh Length: | 300-2100mm | Name: | Wire Mesh Grip Cable Pulling Stocking Grip |
| Warranty: | 1 Year | Feature: | Double Sides Dragging |
| Highlight: | flexible eye light duty pulling grips,wire mesh grip cable pulling stocking,cable pulling stocking grip |
||

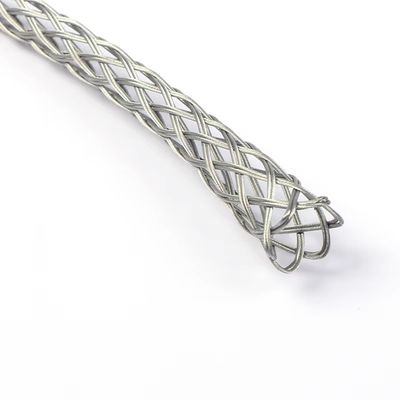

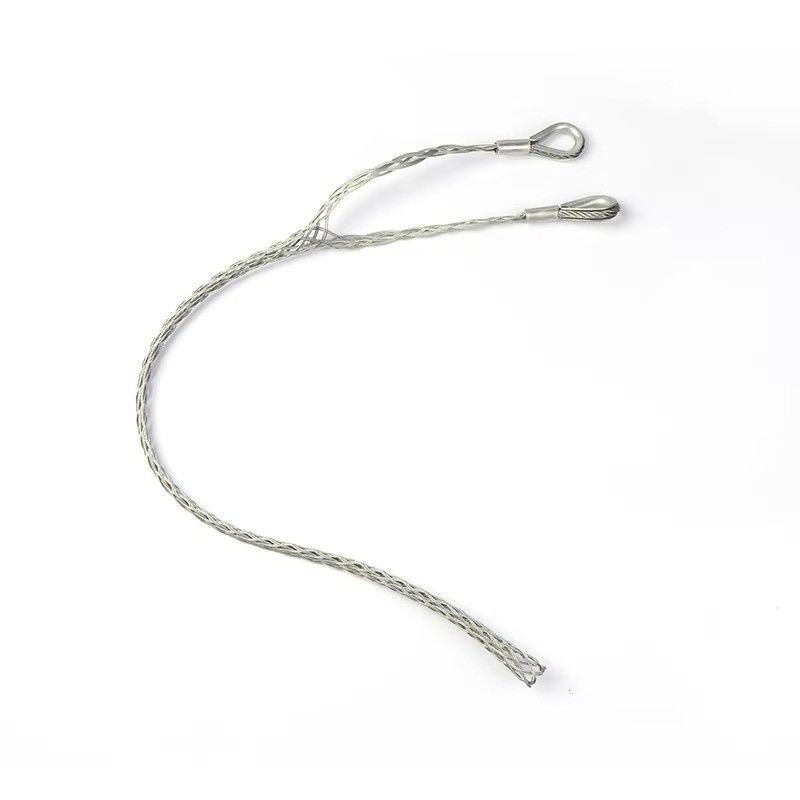

High Quality Flexible Eye Light Duty Pulling Grips Wire Mesh Grip Cable Pulling Stocking Grip
It adopts multi strand weaving,and the cable head can be threaded out for easy installation and connection.The double-sided pull type cable grip is suitable for pulling and dragging heavy cables in the middle.
The material of cable grip can be divided into hot-dip galcanized,stainless steel 304,and stainless steel 316.The materials of the compression connection parts include aluminum alloy compression,stainless steel compression,and copper sleeve compression.
Data Sheet
Double Sides Dragging Cable Grip Specifications
| Model |
Size Range (mm) |
Mesh Length (mm) |
Total Length (mm) |
Breaking Load (kg) |
| MGT-12 | 9-12 | 300 | 360 | 580 |
| MGT-16 | 13-18 | 450 | 560 | 1000 |
| MGT-22 | 18-25 | 520 | 620 | 2500 |
| MGT-30 | 25-37 | 550 | 720 | 3500 |
| MGT-45 | 37-50 | 620 | 800 | 6000 |
| MGT-60 | 50-63 | 750 | 980 | 8000 |
| MGT-75 |
63-75 |
900 | 1180 | 8000 |
| MGT-90 | 75-88 | 950 | 1220 | 9000 |
| MGT-100 | 88-101 | 1000 | 1320 | 11000 |
| MGT-110 | 101-114 | 1180 | 1450 | 12000 |
| MGT-125 | 115-127 | 1250 | 1620 | 13500 |
| MGT-135 | 127-152 | 1460 | 1880 | 18000 |
| MGT-160 | 152-180 | 1780 | 2200 | 18000 |
| MGT-200 | 180-230 | 1950 | 2300 | 20000 |
| MGT-250 | 230-280 | 2000 | 2350 | 20000 |
| MGT-280 | 280-320 | 2100 | 2450 | 20000 |
