Product Details:
|
Dimension(mm): | 2300*1250*1620 | Rated Tension(KN): | 5 |
---|---|---|---|
Weight(KG): | 450 | Maximum Speed(m/min): | 40 |
Max Tension(KN): | 7.5 | Application: | Power Construction |
Usage: | Cable Tensioner | Selling Point: | Cable Pulling Machine |
Name: | 7.5KN Hydraulic Cable Tensioner For Stringing OPGW With 1100 Mm Tension Wheel | Type: | Tensioner For OPGW |
Highlight: | fiber optic cable stripping tool,cable pulling grips |

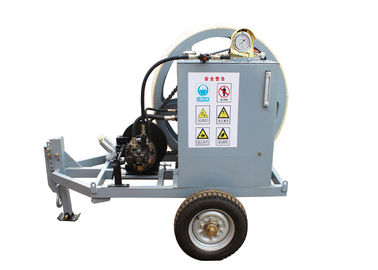

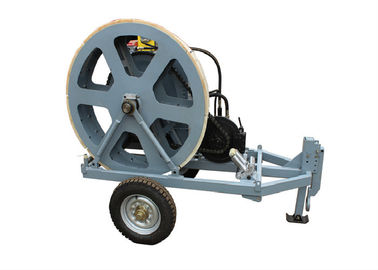

7.5KN Hydraulic Cable Tensioner for Stringing OPGW With 1100 mm Tension Wheel
Application
It is applicable to release wire, ground wire, cable in transmission line project.
Applied for tension stringing of the transmission line conductors and ground cables, and ADSS, OPGW optical cables.
Features
1 high efficiency ;
2 safe and reliable;
3 widely used;
4 high quality
5 convenient to carry
Performance parameter
Max continuous tension: 1*7.5KN
Max speed:40m/min
Structure parameter
Tension wheel diameter:1100mm
Max conductor diameter :24mm
Groove number:5
Total weight:850kg
overall dimension (length*width*height):2300*1250*1620
Main comfigurations
Main motor: Tianjin Parker
Speed reducer :German Rexroth
Hydraulic meter: German
Technical Data
Model Type | YL-75 |
Overall Size(mm) | 2300*1250*1620 |
Weight(kg) | 450 |
Max Tension(KN) | 7.5 |
Rated Tension(KN) | 5 |
Max Velocity(m/min) | 40 |
Diameter of Tension wheel(mm) | Φ1100 |
Applicable Conductor Wire | ≤ LJ-240 |
≤ LJ-185/10 | |
Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
Max Oil Temperature(°C) |
70 |
Rated Working Pressure(MPa) | 25 |
Application
