Product Details:
|
Dimension: | 150D X 130W X 126H (mm) | Type: | Fiber Optic Splicing Machine |
---|---|---|---|
Splice Mode: | Stored 40 Groups, 80 Groups Of User-defined | Applicable Fiber Type: | SM, MM, DS, NZDS |
Return Loss: | More Than 60dB | Applicable Fiber Count: | Single |
Highlight: | wire rope clip,cable pulling grips |
Fiber Optic Cable Tools Dustproof Optical Fiber Fusion Splicer Fiber Optic Splicing Machine
1. Product introduction

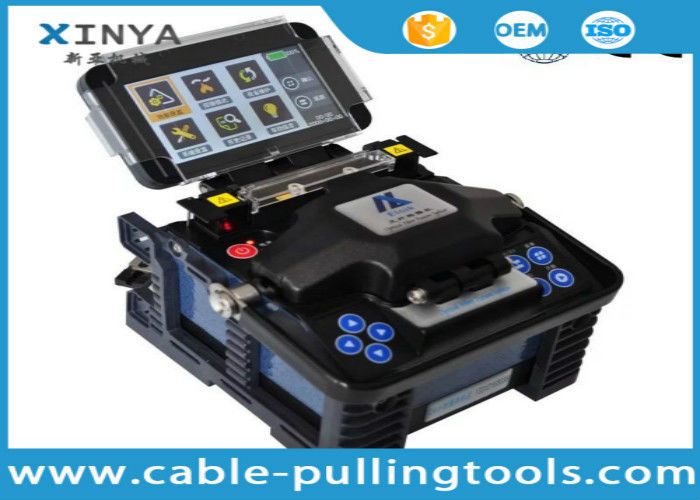

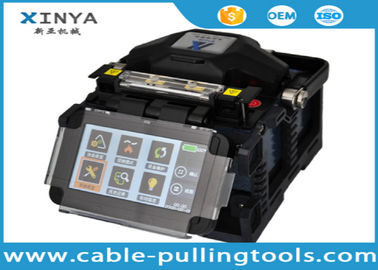

Fusion Splicer ALK-88 (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed
2. Features:
(1) Hardness: The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
(2) Fast: 7s fast splicing , 30s fast heating, support continuous heating , average efficiency improve 2-3times.
(3) Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
(4) Convenience: convenient for maintenance
(5) Six languages: Chinese, English, Russian, Portuguese, French etc.
3. Technology Indexes
Applicable fiber Type | SM, MM, DS, NZDS |
Applicable fiber Count | Single |
Applicable diber diameter | Cladding diameter of 125μm, coating diameter 250~900μm |
Splice Mode | Stored 40 groups, 80 groups of user-defined |
Average splice loss | 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
Return Loss | More than 60dB |
Connecting time | 9sec (typical time) |
Splice loss evaluation | Have |
Tensile test | 2N |
Screen | 4.3inch color LCD, support Chinese and English display |
Optical magnification | X/Y:115 times, X,or Y: 230 times |
Power Supply | 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
Battery |
Typical Operating 220(splice/ heat shrink/thermal stripping) on a single |
Maximum storage | 5000 set of the latest record storage |
Data interface | USB2.0 |
Operating environment |
Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, |
Storage Conditions |
0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) |
Weight |
1.54kgs (without battery), 1.82kgs(including battery), including |
Corrosion resistance |
Device components, spare parts and materials used meet corrosion |
Size | 150D X 130W X 126H (mm) |
Packing | New waterproof, drop, more than can be heavy 300kgs |
4.Package
Standard Package | |||
No. | Description | Quantity | Remark |
1 | Optical fiber fusion splicer | 1 | |
2 | Power Adapter | 1 | |
3 | AC power Line | 1 | |
4 | Electrodes | 1 | |
5 | Cooler | 1 | |
6 | Stripper | 1 | |
7 | Miller Clamp | 1 | |
8 | Blowing Dust Ball with Brush | 1 |
