Product Details:
|
| Dimension: | 150D X 130W X 126H (mm) | Type: | Digital Fusion Splicer Machine ALK-88 With Optic Fiber Cleaver |
|---|---|---|---|
| Splice Mode: | Stored 40 Groups, 80 Groups Of User-defined | Applicable Fiber Type: | SM, MM, DS, NZDS |
| Return Loss: | More Than 60dB | Applicable Fiber Count: | Single |
| Application: | Optical Fiber Fusion Splicer | Product Name: | Digital Fusion Splicer Machine ALK-88 With Optic Fiber Cleaver |
| High Light: | wire rope clip,fiber optic cable stripping tool,Digital Fusion Fiber Optic Cable Tools |
||

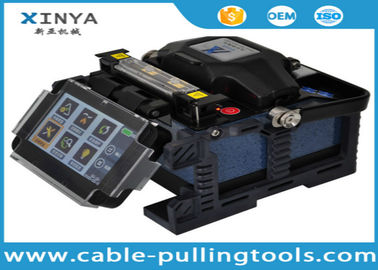

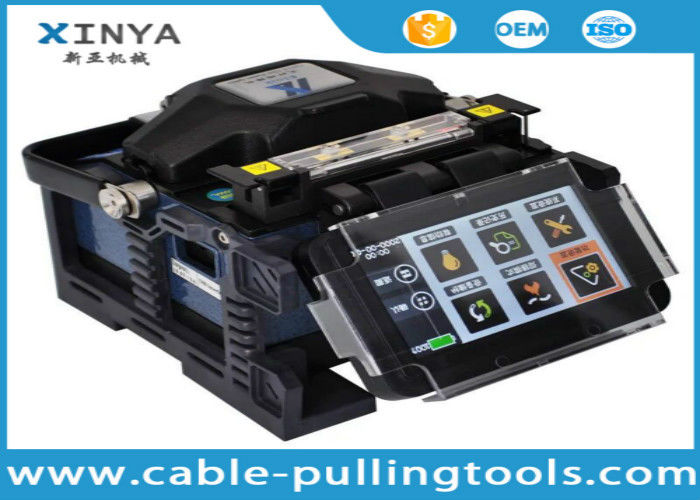

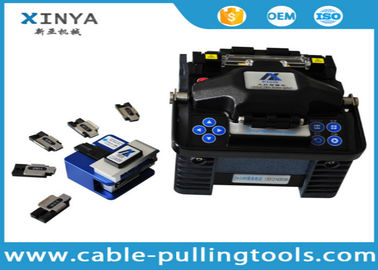

Digital Fusion Splicer Machine Fiber Optic Cable Tools ALK -88 With Optic Fiber Cleaver
1.Product introduction
Fusion Splicer ALK-88 (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed
2.Features:
Hardness: The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .Fast: 7s fast splicing , 30s fast heating, support continuous heating , average efficiency improve 2-3times.Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.Convenience: convenient for maintenanceSix languages: Chinese, English, Russian, Portuguese, French etc.
3. Technology Indexes
| Applicable fiber Type | SM, MM, DS, NZDS |
| Applicable fiber Count | Single |
| Applicable diber diameter | Cladding diameter of 125μm, coating diameter 250~900μm |
| Splice Mode | Stored 40 groups, 80 groups of user-defined |
| Average splice loss | 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
| Return Loss | More than 60dB |
| Connecting time | 9sec (typical time) |
| Splice loss evaluation | Have |
| Tensile test | 2N |
| Screen | 4.3inch color LCD, support Chinese and English display |
| Optical magnification | X/Y:115 times, X,or Y: 230 times |
| Power Supply | 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
| Battery | Typical Operating 220(splice/ heat shrink/thermal stripping) on a single |
| Maximum storage | 5000 set of the latest record storage |
| Data interface | USB2.0 |
| Operating environment | Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, |
| Storage Conditions | 0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) |
| Weight | 1.54kgs (without battery), 1.82kgs(including battery), including |
| Corrosion resistance | Device components, spare parts and materials used meet corrosion |
| Size | 150D X 130W X 126H (mm) |
| Packing | New waterproof, drop, more than can be heavy 300kgs |

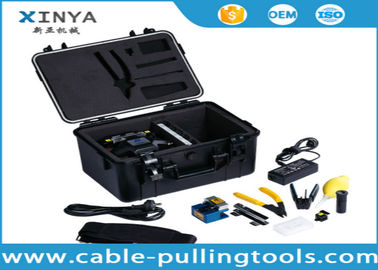

4.Package
| Standard Package | |||
| No. | Description | Quantity | Remark |
| 1 | Optical fiber fusion splicer | 1 | |
| 2 | Power Adapter | 1 | |
| 3 | AC power Line | 1 | |
| 4 | Electrodes | 1 | |
| 5 | Cooler | 1 | |
| 6 | Stripper | 1 | |
| 7 | Miller Clamp | 1 | |
| 8 | Blowing Dust Ball with Brush | 1 | |
