Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Aluminum | Name: | 15KN Aluminum Wire Pulling Grip Come Along Clamp For 95-120mm2 ACSR |
| Selling Point: | Aluminum Wire Grip Clamp | Rated Load: | 15KN |
| Max Open: | 18mm | Item: | Aluminum Wire Pulling Grip Come Along Clamp |
| Highlight: | construction hand tools,basic hand tools |
||

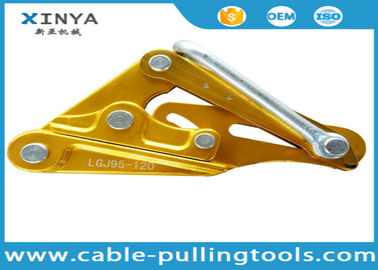

15KN Aluminum Wire Pulling Grip Come Along Clamp for 95-120mm2 ACSR
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
|
0106
|
SKL-40G
|
40
|
400
|
32
|
4.3
|
|
0107
|
SKL-50G
|
50
|
500
|
34
|
7.0
|
|
0108
|
SKL-50GA
|
50
|
630
|
36
|
7.3
|
|
0109
|
SKL-60G
|
60
|
720
|
38
|
9.2
|
|
0111
|
SKL-70G
|
70
|
900
|
42
|
14.0
|
|
0112
|
SKL-80G
|
80
|
1000
|
45
|
18.0
|
|
0113
|
SKL-80GA
|
80
|
1200
|
48
|
18.0
|
Uses
Apply to sag adjusting and tensioning on overhead line construction.
Features
The clamp is forged of high strength aluminum alloy with small and light unit weight.
Specification:
1. Product has safety latch with "G" symbol in the "Model No.";
2. Product has safety latch can achieve 3 times of rated load tensile testing without wire damage. It is most suitable for
the line construction by transmission and transformation facilities company;
3. Other specification of conductor clamp can customized according to customers' requirements.
