Product Details:
|
| Function: | Tight Wire For OPGW | Weight(KG): | 5.6 |
|---|---|---|---|
| Rated Load: | 16KN | Type: | Wire Rope Clip, Cable Wire Grip |
| Application: | Power Construction | Tool: | Fiber Optic Cable Tools |
| High Light: | wire rope clip,fiber optic cable stripping tool |
||

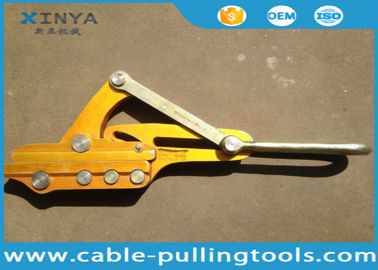

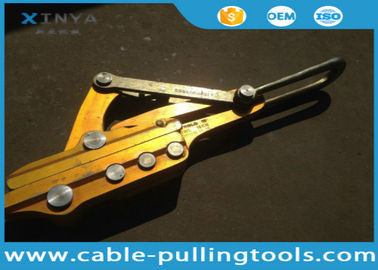

Self Gripping Clamps Fiber Optic Cable Tools Cable Clipper Come Along Clamp Grips 16KN
1. Uses: Apply to OPGW construction.
2. Features: The main body is made of aluminum alloy and it can protect the OPGW effectively.
3. Specification: OPGW diameter is need to indicated when customer place order
4. Characteristic
They are for holding the OPGW overhead optical ground wire, cable diameter is the same as grip size,
in order to ensure clamping firmly, reduce the pressure of clamped parts cable is clamped part
and protect the inside fiber of cable not to be damaged.
The body is forging of high strength aluminum alloy, using the bolt not to slip line and hurt the line.
Need to specify when ordering diameter and fiber cable models.
5. Date Sheet
|
Item No.
|
Cable Diameter
(MM).
|
Rated Load
(KN)
|
Unit Weight
(KG)
|
|
0123
|
8~20
|
25
|
3.8
|
|
0124
|
11~15
|
16
|
5.6
|
|
0125
|
15~17
|
16
|
5.6
|
5.Details
High Quality Forging
We are using aviation grade
aluminum alloy material
With high quality forging.
High Quality Machining Operation
All the parts are made by CNC lathe in order to avoid any personal error.
Strict Testing Processes
All the clamps need to be tested by tensile tsting machine before delivery to customers.
