SHSQN660 Large-Diameter 3-Wheel Nylon Stringing Pulley Block for Heavy-Duty Cable and Fiber Optic Guide

Brand Name:	Xinya
Model Number:	SH
MOQ:	5 piece
Price:	get latest price
Delivery Time:	7 days after paymnet

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu,China(mainland)

Certification:

ISO

Rated Load(KN):

Material:

Nylon/Aluminium

Number Of WHEEL:

Product Name:

SHSQN660 Large Diameter Stringing Block With Three Wheels

Type:

Round Belt, Stringing Block

Packaging Details:

standard export wooden case

Supply Ability:

1000 Piece/Pieces per Month

Highlight:

construction hand tools

building construction tools

Product Description

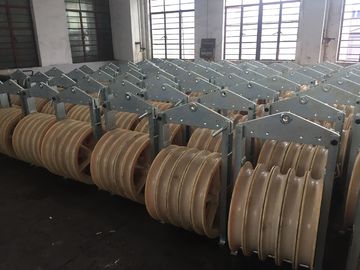

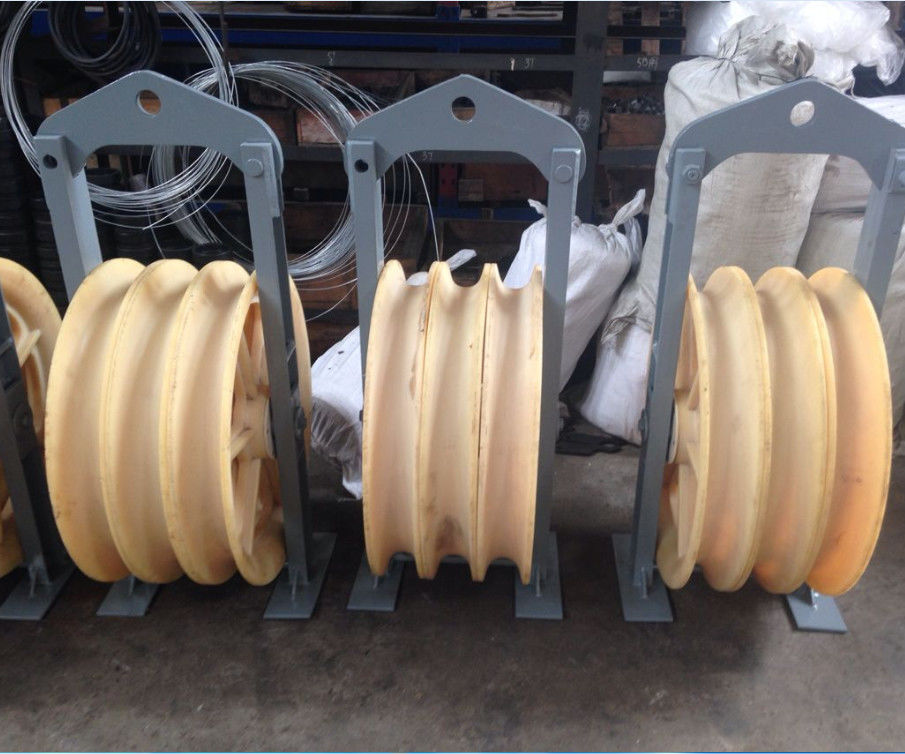

SHSQN660 Large-Diameter 3-Wheel Nylon Stringing Pulley Block

Heavy-duty cable and fiber optic guide roller designed for efficient and safe installation of overhead conductors.

Product Overview

The SHSQN660 Large-Diameter 3-Wheel Nylon Stringing Pulley Block is a durable and efficient tool engineered for guiding fiber optic cables, OPGW, ADSS, and other overhead conductors during installation. Its three large nylon wheels ensure smooth cable feeding, minimize friction, and protect cables from bending or damage. Built with high-strength steel and corrosion-resistant components, this pulley block delivers exceptional stability and reliability for long-distance stringing operations.

Product Definition

A stringing pulley block is a specialized guiding roller used in overhead cable installation. The SHSQN660 model features three nylon wheels arranged for optimal load distribution, making it ideal for large-diameter cables and high-tension line construction.

Key Features

Three Large Nylon Wheels - Reduces friction and prevents cable damage
660mm Wheel Diameter - Supports large cables and long-distance stringing
Durable Steel Frame - Provides strength, stability, and corrosion resistance
Low-Friction Bearings - Ensures smooth cable movement under high tension
Versatile Mounting Options - Compatible with hooks, clevises, or custom fittings
Heavy-Duty Construction - Suitable for power lines, fiber optic lines, and telecom projects
Anti-Drop Side Plates - Keeps cables securely in groove during operation

Product Advantages

Protects cables from bending, flattening, or surface damage
Improves installation efficiency with smooth and reliable wheel rotation
Highly stable and durable for repeated and long-distance stringing
Customizable configurations for wheel material, mounting type, and groove size
Ideal for both industrial and field applications, including telecom, power, and utility projects

Applications

OPGW fiber optic cable installation
ADSS and other overhead fiber optic cable stringing
Overhead power line construction
Utility and telecom line deployment
Long-distance cable guiding and tensioning
Workshop and on-site installation operations

Technical Specifications

Model	Number of Wheels	Rated Load (KN)	Weight (kg)	Features
SHD660	1	20	30	Rubber lined aluminous sheave
SHS660	3	40	106	Middle: cast steel sheave conductor: cementation aluminous sheave
SHW660	5	60	150
SHDN660	1	20	24	MC nylon sheave
SHSLN660	3	40	92	Middle: MC nylon sheave conductor: cementation aluminous sheave
SHWLN660	5	60	120
SHSQN660	3	40	76	MC nylon sheave
SHWQN660	5	60	110
SHQZ660	7	80	268	Middle: cast steel sheave Conductor: cementation aluminous wheel
SHQ660A	7	80	190	Middle: cast steel sheave Conductor: MC nylon wheel

Note:
1. Maximum suitable conductor ACSR500
2. Block dimension (outside diameter * root diameter * sheave width) Φ660 * Φ560 * 100mm

Frequently Asked Questions

Q1: Can this 3-wheel pulley block be used for fiber optic cables?

Yes, it is specifically designed to guide delicate fiber optic and OPGW cables safely.

Q2: Are the nylon wheels replaceable?

Yes. Replacement wheels are available and can be supplied separately.

Q3: Can the pulley block be used for high-tension stringing?

Absolutely. The robust frame and smooth bearings allow safe operation under high tension.

Q4: Can it be customized for different mounting options?

Yes. We provide hook, clevis, or custom fittings according to your project requirements.

Q5: Is it suitable for long-distance cable stringing?

Yes. The large-diameter wheels and 3-wheel design ensure minimal cable friction and reliable performance for long spans.
