Product Details:
|
| Material: | Nylon/Polyester | Diameter: | 4-24mm |
|---|---|---|---|
| Structure: | Double Braided | Item: | Nylon Twisted Rope |
| Application: | Caving,lifting,loading | Package: | Bundle,coil,reel |
| Highlight: | wire rope clip,fiber optic cable stripping tool,24mm Diameter Nylon Twisted Rope |
||

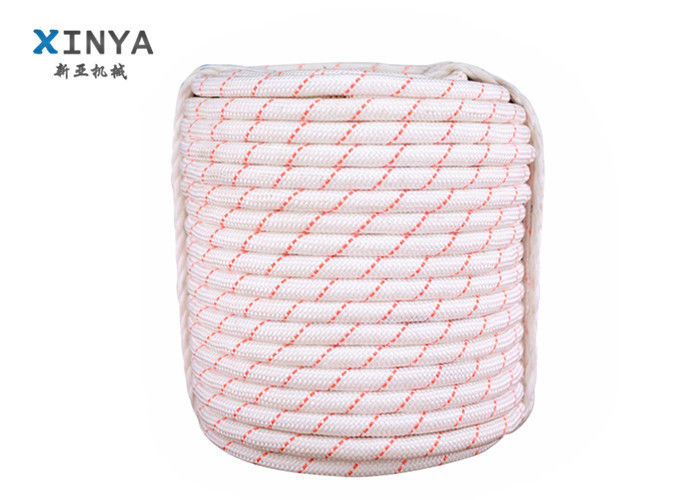

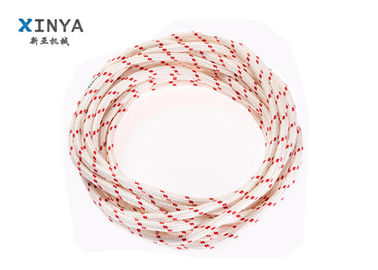

Durable Polyester Double Braided Rope Nylon Twisted Rope 4-24mm Diameter
| Information Table | |
| Material | 100% polyester/polyamide/nylon |
| Type | Braided or twisted rope |
| Specification | Diameter from 4mm-30mm; and we can design according to your needs |
| Color | White, black, red, yellow, blue and green or others |
| Usage |
For ente rtainment, camping or others |
| Packaging | Pack it in rolls or according to your needs |
| OEM | Available |
| Certification | LA,CE,ISO |
Data Sheet
| Specification | ||||
| Diameter/mm | Diameter/inch | Weight | Breaking Strength | |
| kg/220m | polyester | nylon | ||
| 4 | 5/32 | 2.21 | 290kg | 320kg |
| 5 | 3/16 | 3.45 | 400kg | 500kg |
| 6 | 7/32 | 4.96 | 550kg | 750kg |
| 7 | 1/4 | 6.75 | 760kg | 1000kg |
| 8 | 5/16 | 8.82 | 1000kg | 1300kg |
| 9 | 11/32 | 11.16 | 1200kg | 1700kg |
| 10 | 3/8 | 13.78 | 1600kg | 2000kg |
| 12 | 1/2 | 19.85 | 2300kg | 3000kg |
| 14 | 9/16 | 27.01 | 3100kg | 4000kg |
| 16 | 5/8 | 35.28 | 4100kg | 5300kg |
| 18 | 3/4 | 44.66 | 5000kg | 6700kg |
| 20 | 13/16 | 55.13 | 6300kg | 8200kg |
Application
