Heavy-Duty VA Type Manual Ratchet Lever Hoist with 1T Rated Load and 1.5m Lifting Height - Hand Operated Chain Block

Heavy-Duty VA Type Manual Ratchet Lever Hoist with 1T Rated Load and 1.5m Lifting Height - Hand Operated Chain Block

Brand Name:	XINYA
Model Number:	VJ
MOQ:	1set
Price:	get latest price
Delivery Time:	7 workdays after payment
Payment Terms:	L/C,T/T,,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu,China

Certification:

ISO

Rated Load:

Weight:

7.5kg

Height:

1.5 M

Usage:

Construction Hoist

Speed:

Various Selection

Item:

Heavy-Duty VA Type Manual Ratchet Lever Hoist – Hand Operated Chain Block Lifting Tool

MOQ:

1 Set

Warranty:

1 Year

Packaging Details:

Carton

Supply Ability:

1000 sets/week

Highlight:

VA Type Ratchet Manual Lever Hoist

Ratchet Manual Lever Hoist

Hand Ratchet Manual Lever Hoist

Product Description

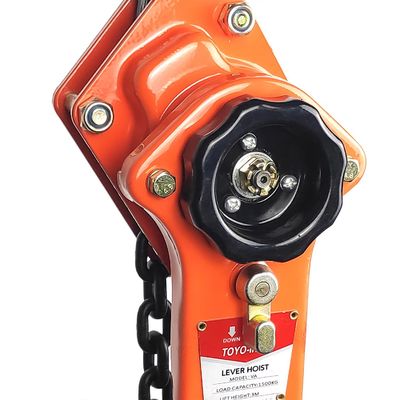

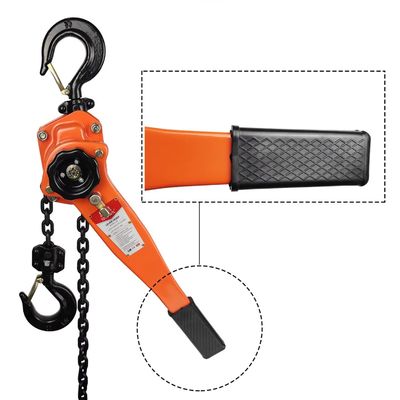

Heavy-Duty VA Type Manual Ratchet Lever Hoist

A robust hand-operated lifting device designed for heavy-duty material handling applications in industrial and construction environments.

Product Overview

The Heavy-Duty VA Type Manual Ratchet Lever Hoist provides reliable and precise lifting, pulling, and tensioning capabilities. Equipped with a durable ratchet mechanism and high-strength chain, it ensures safe and efficient operation in demanding environments.

Product Definition

A manual lever hoist (also known as a hand chain block or ratchet lever hoist) is a mechanical device used to lift, pull, or position heavy loads manually. The VA Type design ensures enhanced durability and safety. Operated by a hand lever, the ratchet mechanism allows controlled lifting and lowering of loads with minimal effort, making it ideal for workplaces without power supply.

Key Features

Heavy-duty load capacity suitable for lifting and pulling heavy materials with high safety standards
Ratchet mechanism provides precise load control and secure holding during operation
Durable construction made of high-strength steel for long-lasting performance
Compact and portable design allows use in confined spaces and remote locations
Versatile operation ideal for lifting, pulling, and tensioning tasks

Advantages

Enhanced safety with reliable brakes and ratchet mechanism to prevent accidental load release
Ease of use with manual operation requiring minimal training and no electricity
Durability with heavy-duty steel construction ensuring long-term use in harsh environments
Precision ratchet mechanism allows accurate load positioning
Versatility for use in construction sites, warehouses, workshops, and utility operations

Applications

Industrial lifting and material handling
Construction site load positioning
Maintenance and repair tasks
Warehousing and logistics operations
Offshore and remote lifting projects

Technical Specifications

Download Technical Manual (PDF)

Model	0.75ton	1.5ton	3ton	6ton
Capacity (t)	0.75	1.5	3	6
Standard Lift (m)	1.5	1.5	1.5	1.5
Running Test Load (t)	9.2	18.4	36.8	73.5
Effort Required to Lift Max Load (N)	148	216	336	345
Chain Diameter (mm)	6.3	7.1	9	9
Net Weight (kg)	6.6	11.65	21.1	23.7
Dimensions A (mm)	155	170	198	198
Dimensions B (mm)	128	147	182	230
Dimensions C (mm)	310	350	470	590
Dimensions D (mm)	240	365	365	365
Dimensions G (mm)	28	36	47	49

Frequently Asked Questions

What is the maximum load capacity of the VA Type lever hoist?

Load capacity varies by model, typically ranging from 0.5 to 10 tons. Always refer to the product specification label.

Can this hoist be used in confined spaces?

Yes, its compact and portable design allows operation in tight or hard-to-reach areas.

Is electricity required to operate the hoist?

No, it is fully manual and hand-operated, making it ideal for locations without power supply.

How is safety ensured during lifting?

The ratchet mechanism and load-holding brake prevent accidental load drops and ensure controlled lifting.

Can it be used for pulling or tensioning?

Yes, the VA Type lever hoist is versatile and can be used for pulling, lifting, and tensioning heavy loads.
