| Brand Name: | XINYA |
| Model Number: | DSJ150/180 |
| MOQ: | 1 |
| Price: | $1,200-1,500 |

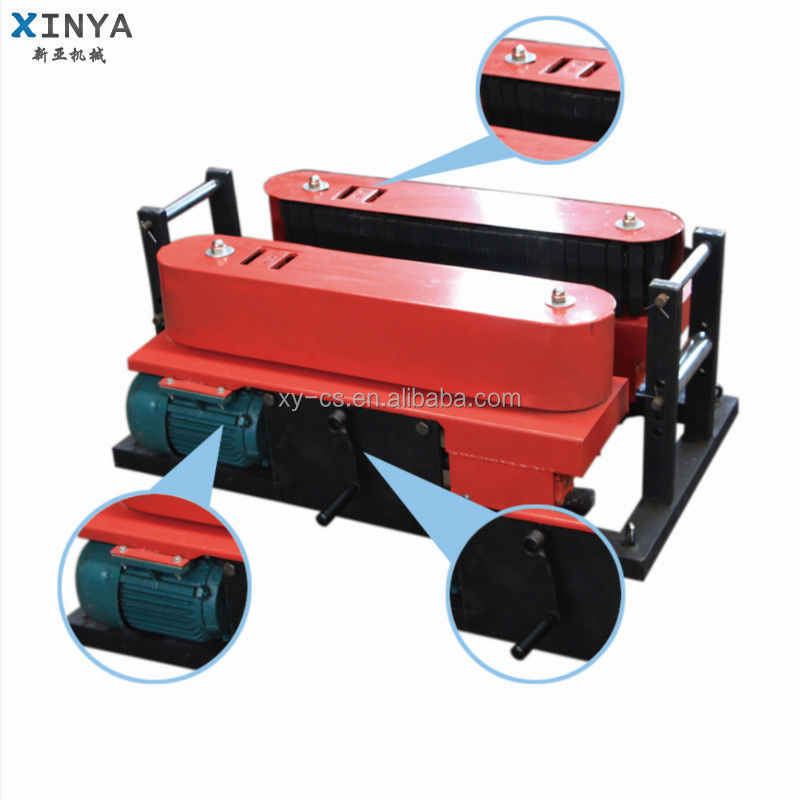

GSS-5 8KN Electric Cable Conveyor for Underground Power Cable Laying
The GSS-5 8kN Electric Cable Conveyor is a reliable and efficient solution designed specifically for underground power cable laying and medium-duty cable installation projects. Positioned between entry-level and professional heavy-duty models, the GSS-5 offers an excellent balance of power, stability, and cost-effectiveness, making it an ideal choice for contractors, utility companies, and infrastructure service providers.
With a rated 8kN conveying force, the GSS-5 electric cable conveyor significantly improves cable installation efficiency compared to manual methods or basic mechanical tools. It is engineered to ensure smooth, continuous cable feeding while protecting the cable jacket from damage, even in underground ducts with moderate resistance.
Underground power cable projects often involve long ducts, complex routing, and limited working space. The GSS-5 is designed to address these challenges by providing stable conveying force, controlled feeding speed, and compact structure suitable for confined environments such as manholes, trenches, and underground wells.
Unlike traditional cable pulling methods that rely heavily on manual labor or single-point traction, the GSS-5 electric cable conveyor distributes force evenly along the cable, reducing stress on the cable core and outer sheath. This results in safer installation, lower risk of cable damage, and improved overall project quality.
The GSS-5 delivers a rated conveying force of 8kN, making it suitable for medium-duty underground cable installation tasks. This force level is ideal for standard power cables used in residential, commercial, and light industrial projects.
Equipped with a reliable electric drive system, the GSS-5 ensures consistent output and smooth operation during continuous working hours. The electric system reduces operator fatigue and allows precise control over cable feeding speed.
The machine supports a wide range of cable diameters, making it compatible with most commonly used underground power cables. This versatility allows contractors to use the same equipment across multiple projects without frequent adjustments or additional tools.
The GSS-5 uses rubber die-cast conveyor rollers that grip the cable securely without damaging the outer sheath. This design minimizes abrasion, deformation, and surface marks, which is especially important for high-value power cables.
The adjustable roller center distance allows quick adaptation to different cable sizes, improving operational flexibility and setup efficiency on site.
For longer installation distances or higher resistance routes, multiple GSS-5 units can be connected and operated in series, providing extended conveying capability while maintaining smooth and controlled cable movement.
Using the GSS-5 electric cable conveyor offers several advantages over traditional cable installation methods:
Higher Efficiency – Faster cable laying with less downtime
Reduced Labor Cost – Fewer workers required on site
Improved Safety – Lower physical strain and reduced risk of accidents
Better Cable Protection – Even force distribution prevents cable damage
Consistent Installation Quality – Controlled speed and stable conveying force
These benefits make the GSS-5 a preferred solution for contractors seeking to improve productivity while maintaining high installation standards.
The GSS-5 electric cable conveyor is widely used in a variety of underground cable installation scenarios, including:
Underground power distribution cable laying
Municipal infrastructure and utility projects
Residential and commercial electrical construction
Industrial plant power cable installation
Retrofit and renovation of existing underground cable systems
Its medium-duty performance makes it especially suitable for projects that require more power than entry-level models but do not require heavy-duty long-distance solutions.
Within the GSS cable conveyor series, the GSS-5 is positioned as a mid-range solution:
Compared to smaller models, it provides higher conveying force and better stability
Compared to heavy-duty models, it offers lower investment cost and easier handling
This positioning makes the GSS-5 an excellent upgrade choice for customers who have outgrown entry-level equipment and need improved performance without moving to a full heavy-duty system.
The GSS-5 is designed with user convenience in mind. Its straightforward control system allows operators to quickly start, stop, and adjust conveying speed as needed. Routine maintenance is simple, with easy access to key components and minimal downtime required for inspection and servicing.
This ease of operation reduces training requirements and helps ensure consistent performance across different job sites and operators.
The GSS-5 electric cable conveyor is manufactured in accordance with international quality standards. CE certification is available, making the machine suitable for export to Europe, the Middle East, Latin America, and other global markets.
OEM customization options are also available, including branding, color, and packaging, allowing distributors and project owners to tailor the product to their specific requirements.
| Item | Specification |
|---|---|
| Model | GSS-5 |
| Product Name | Electric Cable Conveyor / Cable Pushing Machine |
| Motor Power | 1.1 kW × 2 |
| Applicable Cable Diameter | 10 – 180 mm |
| Conveying Force | 8 kN |
| Clamping Force | ≤ 2.7 kN |
| Speed Options | 9 m/min · 12.5 m/min · 20 m/min |
| Overall Dimensions (L × W × H) | 1050 × 560 × 470 mm |
| Weight | 180 kg |
| Operation Mode | Single unit or multiple units in series |
| Synchronization Control | Control box available (optional) |
| Conveyor Roller Type | Rubber die-cast rollers |
| Cable Protection | No damage to cable outer sheath |
| Typical Application | Underground power cable laying |
| Certification | CE (available) |
Choosing the GSS-5 means investing in a solution that delivers reliable performance, strong value, and long-term efficiency. For underground power cable laying projects where medium-duty capability is required, the GSS-5 provides an optimal balance between power and cost.
Contractors and utility companies benefit from faster installation times, reduced labor costs, and improved cable protection, all of which contribute to better project outcomes and higher customer satisfaction.
The GSS-5 8kN Electric Cable Conveyor is a practical and efficient solution for underground power cable laying. Its stable conveying force, cable-friendly design, and flexible operation modes make it suitable for a wide range of medium-duty cable installation projects.
Whether used as a standalone unit or combined with multiple machines in series, the GSS-5 helps contractors complete underground cable installation tasks safely, efficiently, and cost-effectively, making it a valuable addition to any professional cable installation equipment lineup.
