| Brand Name: | XINYA |
| Model Number: | DSJ |
| MOQ: | 1 |
Overview

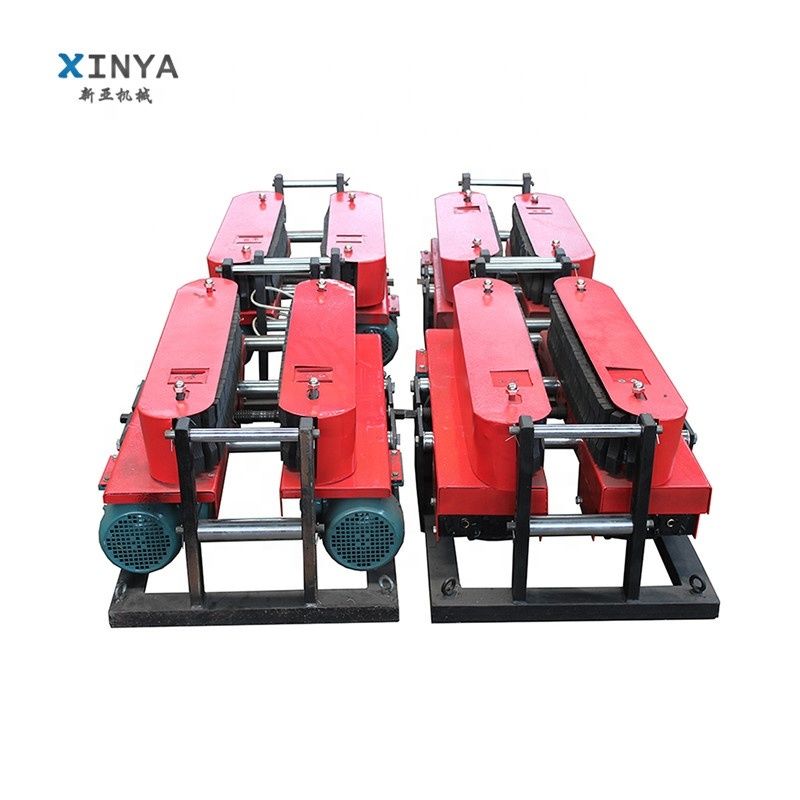

The GSS-6 Electric Cable Conveyor is a professional-grade underground cable conveying machine designed for medium-distance power cable installation. With a 12kN conveying force, it provides an excellent balance between performance, stability, and cost, making it one of the most commonly selected models for utility and municipal projects.
The GSS-6 is engineered for continuous operation and reliable performance, ensuring smooth and safe cable feeding even in challenging underground environments with moderate resistance.
Key Features
12kN conveying force for standard power cable installation
Cable diameter range of 10–200mm
Stable electric drive system for long working hours
Rubber conveyor rollers prevent cable surface damage
Adjustable roller spacing for different cable diameters
Supports synchronized operation of multiple machines
CE certified, suitable for Europe and global export markets
Advantages
The GSS-6 significantly improves installation efficiency compared to manual methods, while maintaining excellent cable protection. Its robust structure ensures consistent conveying force, reducing downtime and installation errors. For most underground power cable projects, the GSS-6 represents the best balance of power and price.
Applications
Underground power cable installation
Municipal and utility infrastructure projects
Industrial electrical construction
Medium-distance underground cable conveying
| Item | Specification |
|---|---|
| Model | GSS-6 |
| Product Name | Electric Cable Conveyor / Cable Pushing Machine |
| Motor Power | 1.5 kW × 2 |
| Applicable Cable Diameter | 10 – 200 mm |
| Conveying Force | 12 kN |
| Clamping Force | ≤ 2.7 kN |
| Speed Options | 9 m/min · 12.5 m/min · 20 m/min |
| Overall Dimensions (L × W × H) | 1100 × 600 × 480 mm |
| Weight | 220 kg |
| Operation Mode | Single unit or multiple units in series |
| Synchronization Control | Control box available (optional) |
| Conveyor Roller Type | Rubber die-cast rollers |
| Cable Protection | No damage to cable outer sheath |
| Typical Application | Underground power cable installation |
| Certification | CE |
