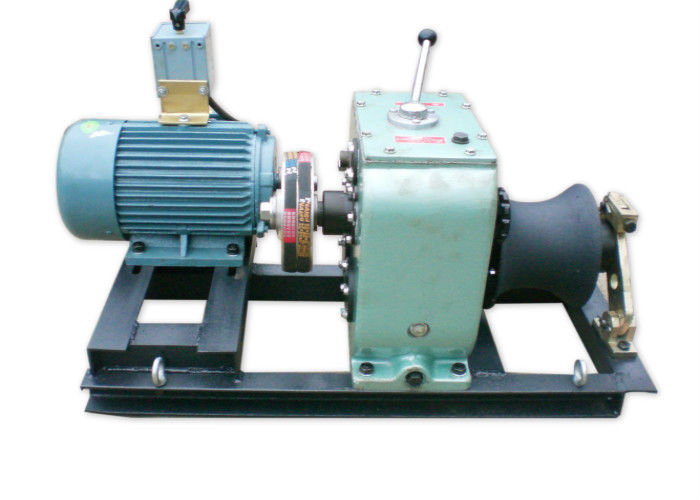

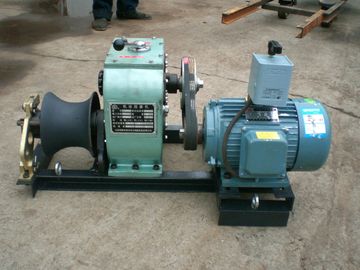

Cable Winch Puller 3 Ton Electric Winch 220V For Cable Pulling
Application
3 ton Electric winch is used in power transmission and distribution engineering, telephone construction
tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt,
effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse
gear moment to ensure construction safety.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Characteristic
1. Small Volume & Compact Structure.
2. Light Weight,Easy to Transport.
3. High Efficiency,Save Labor.
4. Widely Used,pulling,hoisting,lifting and so on.
5. Safe & Reliable,Interlock Brakes System.
Maintenance and safe use
In order to maintain the normal operation of the cutter mill, to extend the service life of cutter cutter mill,
we must strengthen the cutter mill maintenance and repair. The operator must understand the entire
machinery of the structure, performance, proficiency in use.
1, the permissible load on the roll is 3T: when slow turn 3000 kg, 1800 kg when fast forward; when 5T
slow turn 5000 kg, 2500 kg when fast forwarding may not overloaded.
2, 1/4 speed gear box lubrication oil must be maintained.
3, in order to prevent the phenomenon of jump block, in the allocation block that has the effect of shifting
fork positioning of the ball as the spring. Therefore, when using, pay attention to check whether the top
spring ball firmly. Before use, such as strong, you must replace the spring.
4, automatic brake and brake interlock should always check the wear condition of bakelite, the automatic
braking gear rotation and back loose clearance is 0.5 mm, greater than 1 mm must be replaced bakelite,
otherwise easily lead to brake failure and accidents.
5 speed gear box in automatic brakes when lifting, automatic braking gear issue, "Benedict, Benedict,
Benedict" sound, proven speed gear is working properly, it is not this sound back to loose.
6, base of anchoring methods: by bearing support on both sides of the drum (with two holes) of the
anchor point, not as an anchor point to other locations.
7, roll bearing locking screw, must cooperate with corresponding holes, instead of prohibiting the use of
other screw locking screw.
8, the gear box housing is cast aluminum, screw it on too tight and unnecessary disassembly, but can
not struck with a hammer.
9, after the machine by the long-distance transport, the need for a detailed examination of each component fastening screws loose,
lubricating oil is normal.
10, the prime mover is gasoline, diesel, according to the machine can use regulatory requirements.
11, before each use of the machine, you should check whether the debris body, whether the impact of machine run around obstacles,
Also check each transmission, everything is normal, it can be used.
12, the machine after each use, the machine should promptly remove dust, oil and other dirt.
Technical Data
Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(Ton) |
JJM3-D | Electric Engine | Slow | 4 | 3 |
Quick | 7 | 1.8 |
Reverse | 4 | |
Practical Application
