Product Details:
|
| Application: | Power Construction | Usage: | Cable Pulling/Hoisting |
|---|---|---|---|
| Capacity: | 50KN | Power Source: | Honda/Yamaha Gasoline Engine |
| Weight(kg): | 280/300 | Suitable Wire Rope(mm): | 15 |
| Bottom Diameter Of Groove(mm): | 240 | Dimension(mm): | 1330*800*600 |
| Wattery: | 1 Year | ||
| High Light: | gasoline powered winch,engine powered winch,50KN Cable Winch Puller |
||
5 ton Double Capstan Gas Powered Winch for Pulling Hoisting Direct supplier with honda/yamaha engine
Application
Use to erecting pylon and sagging operation in line construction .
Winch is widely used in electric power, telecommunications, municipal engineering construction tight Quad pole tower or motor line, suitable for field without electric field. The field operation proves that the structure has the advantages of reasonable structure, small size, light weight, high power, low noise, flexible operation and convenient handling, and is well received by the customers.

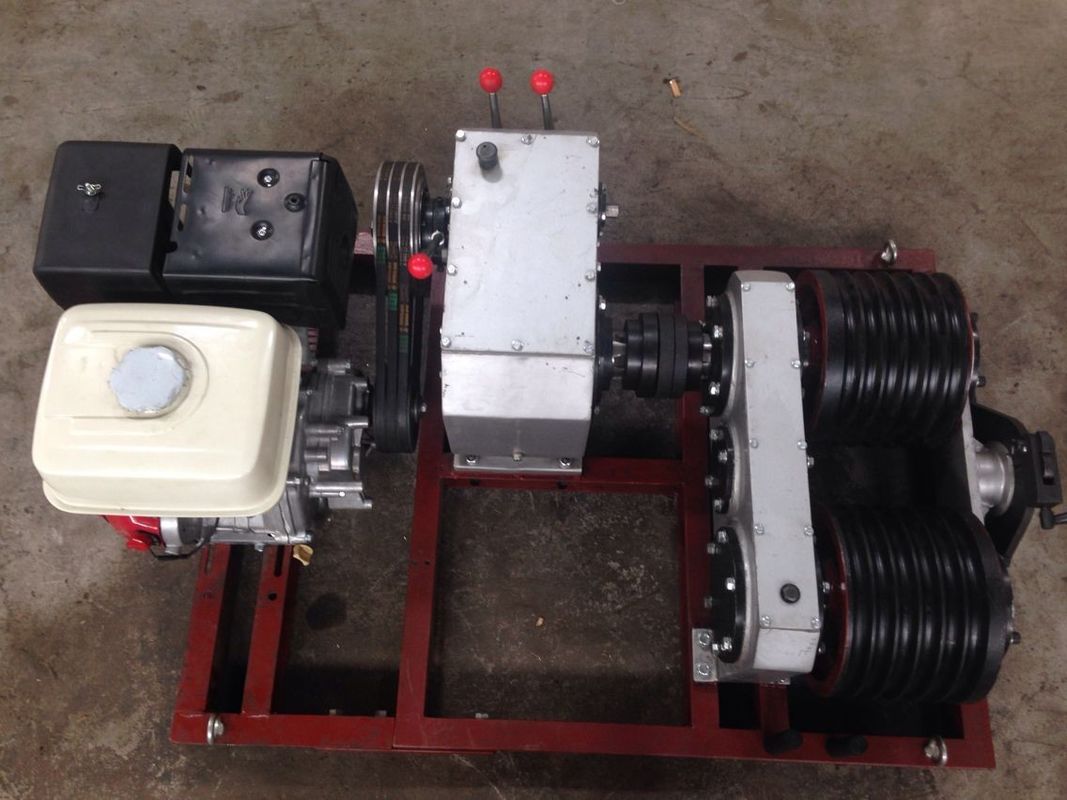

Motorized grinder is composed of a roller wheel, gear box, diesel or gasoline engine and the base frame, the working principle of grinding cutter motor: cutter grinding groove is used for traction slot connection directly and wire rope, the gasoline engine or diesel engine, electric motor as the driving force, through the transmission gearbox to achieve the required speed, the machine is located in steel structure, stable and easy to move.
We have 1Ton/3Ton/5Ton/8Ton winch with diesel/gasoline/electric engine.
Any inquiry or requirements will get our prompt attention.
Technical Data
| Model | JJM-5SQ | |||||

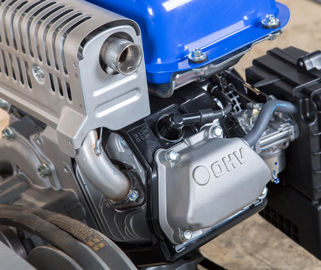

| Engine | Honda/Yamaha gasoline engine | |||||
| Power | 13Hp ,3600rmp | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| SlowⅠ | SlowⅡ | FastⅠ | FastⅡ | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(kg) | 280/300 | |||||
| Dimension(mm) | 1330*800*600 | |||||
Practical Application
