Product Details:
|
| Type: | Manual Pump CP-700 | Weight(kg): | 9 |
|---|---|---|---|
| Max Pressure（Mpa）: | 700 | Warranty: | 1 Year |
| Oil Volume(L): | 0.94 | ||
| Highlight: | construction hand tools,building construction tools |
||

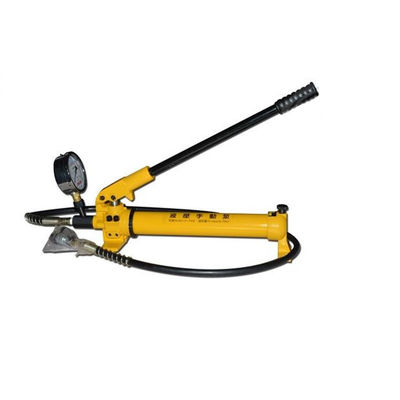

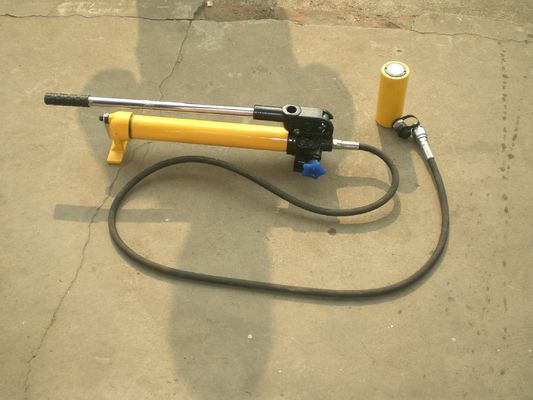

Manual pump CP-700 max pressure 70Mpa 0.94L oil Volume 1.5m hose
Application
Hand Operated Hydraulic Pump is to provide power for the cutting tool, the hydraulic compressor,
punching machine and other construction machinery,which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Features
1 Hydraulic pumps to drive crimping head, cutting heads and punch head.
2 Two stages speed action for rapid ram advantage.
3 Manual operation style, oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter(to be ordered).
4 Accessories including 2M high pressure hose and coupler plug P/T 3/8” thread, oil must be changed half a year.
Technical Data
| Item NO. | Rated output | Oil capacity | Size | Weight | Remarks |
| CP-180 | 700kg/cn2 | 350CC | 420*260*260mm | 5kg | manual type |
| CP-390 | 700kg/cn2 | 400CC | 420*260*260mm | 5.4kg | manual type |
| CP-700 | 700kg/cn2 | 900CC | 680*185*185mm | 12kg | manual type |
| CP-700-2 | 700kg/cn2 | 2100 | 710*185*190mm | 13kg | manual type |
