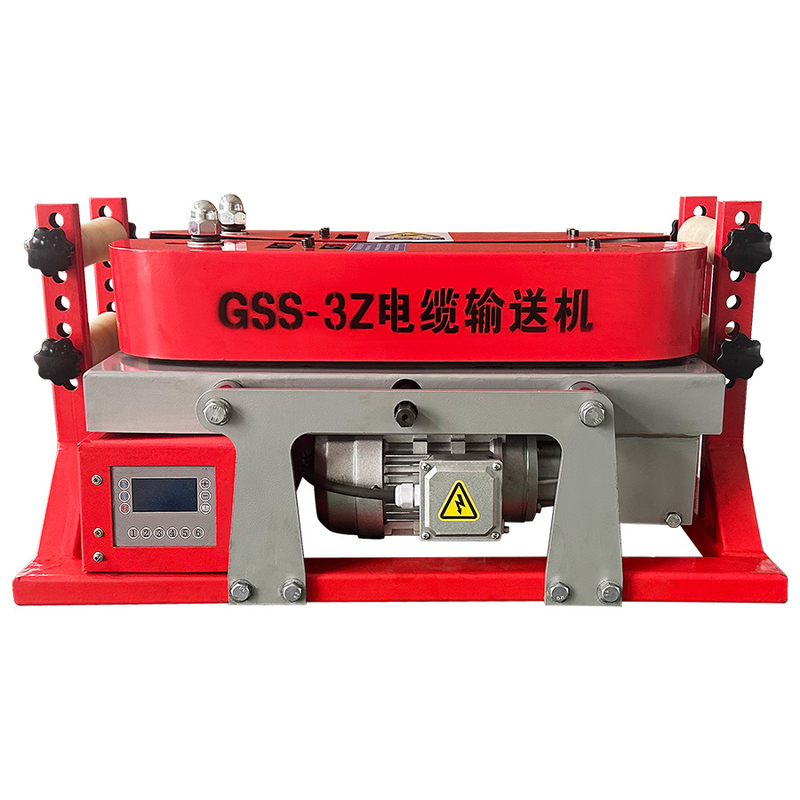

GSS-3Z Cable Pulling Machine 400 KGS Capacity for 10-100mm Cables

Name: GSS-3Z Cable Pulling Machine 400 KGS Capacity for 10-100mm Cables
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-3Z
Price: 1,500.00 USD
Availability: InStock

Brand Name:	XINYA
Model Number:	GSS-3Z
MOQ:	1
Price:	USD1000-USD2000
Delivery Time:	7-15 days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Line Pulling:

400 KGS

Cable Diameter:

10-100mm

Pulling Speed:

9-35 M/min

Electric Motor:

1.0KWx2PCS

Oversize Dimension:

760x480x380mm

Weight:

100 KGS

Clamp:

No More Than 2.7KN

Packaging Details:

wood case

Highlight:

400 kgs cable pulling machine

cable winch puller for 10-100mm cables

GSS-3Z cable pulling machine with warranty

Product Description

Model GSS-3Z Cable Pulling Machine Cable Conveyor

400 KGS Capacity for 10-100mm Diameter Cable

The GSS-3Z intelligent cable conveyor represents the latest generation of cable laying equipment, engineered for modern power engineering requirements. This advanced system combines user feedback with technological upgrades to deliver faster, more flexible, and easier-to-control solutions for high-voltage cables, ultra-long distances, and complex environment installations.

Key Advantages

Enhanced Speed Design: Optimized drive system increases maximum transmission speed to 35 meters/min (adjustable), reducing construction time by over 30%
Rapid Deployment: Plug-and-play functionality meets emergency engineering requirements
Precision Control: Digital inverter enables stepless speed regulation with seamless switching between low-speed/high-torque and high-speed operation modes
Multi-Machine Synchronization: Multiple units can coordinate speed regulation to maintain tension balance during long-distance laying, preventing cable damage
Advanced Conveying Module: High wear-resistant composite track with non-slip bump design supports bidirectional operation for complex path adaptation

Product Overview

Double-track transmission system ensures stable traction across various cable specifications
Wear-resistant rubber conveyor belt/track with non-slip surface provides superior cable grip
Modular design enables multiple unit operation for ultra-long distance installations

Technical Specifications

Item	Value
Model	GSS-3Z
Power	Electric engine 1.0KWx2 380V 3-phase
Cable Diameter	10-100mm
Dimension	760×480×380mm
Pulling Speed	9-35m/min
Clamp	≤2.7KN
Pulling Force	4KN
Weight	100kg
