Product Details:
|
Max Load: | 10KN | Engine: | Honda Engne |
---|---|---|---|
Applicaiton: | Power Construction | Net Weight: | 36kg |
Dimension: | 770*500*380mm | Usage: | Cable Pulling |

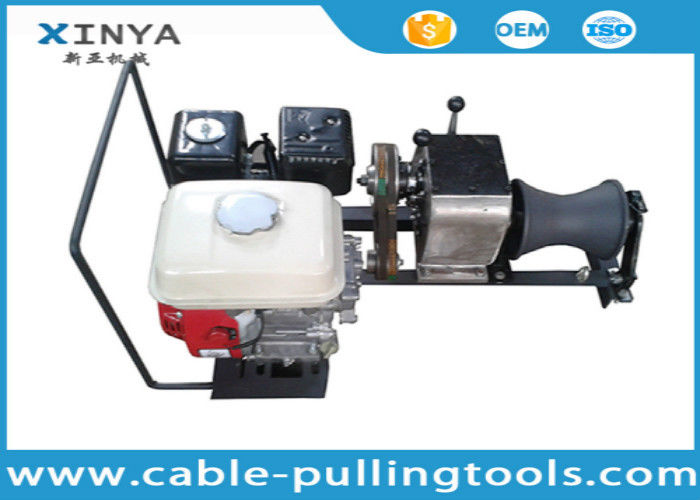

Selling Point: | Portable Winch | Name: | Honda Portable Winch |
High Light: | gasoline powered winch,cable pulling winches |
Brief Introduction
Winch is simple and lightweight structure. Can be used for transmission line construction neutral tower, overhead line and other operations, is set up aerial high voltage transmission lines and laying of underground cable construction machinery, smooth, easily Tower Group legislature leather in a variety of complex conditions, erection and other lifting wires, traction. The experiments and field proven practical effect, have combined management, small size, light weight, great skill, flexible operation, easy handling advantages and widespread electricity operators welcome.
Structure
It is made up of the roller wheel, transmission, diesel or gasoline engine and the base frame composition, motor cutter grinding works: winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force, after shifting box of gear to achieve the required speed, the machine is located on steel, robust and easy to move.
Classification
It is classify by engine.
1. diesel engine winch
2. gasoline engine winch
3. electric engine winch
It is classify by tranmission system
1. belt driven transmission
2. shaft driven transmission
Application
It is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1. Speedy and Efficient;
2. Safe and Reliable;
3. Compact structure;
4. Small volume;
5. Light in weight;
Lubrication
using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.
Operation methods
1 before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position
2 when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly
3 when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.
4 If there is any difficulty during the process of changing crosspiece position,you shouldn’t try to complete the job forcrfully.Instead you should use the hand installment to help you complete the job.Concrete procedure:using the spanner to move the hand installment to a position with a certain angle,then you can change the crosspiece position smoothly.
Technical Data
Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
JJM1-Q | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
(Fast) | 15.0 | 0.6 | |||
Reverse | 12.0 | No Lifting! | |||
Electric motor | (Slow) | 10.0 | 0.8 | 46 | |
(Fast) | 15.0 | 0.6 | |||
Reverse | 12.0 | No Lifting! |
Honda Engine
Load Test
