5 Ton Honda Gasoline Powered Winch

5 Ton Honda Gasoline Powered Winch
5 Ton Honda Gasoline Powered Winch 5 Ton Honda Gasoline Powered Winch

Large Image :  5 Ton Honda Gasoline Powered Winch

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1250-1500/set
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/week

5 Ton Honda Gasoline Powered Winch

Description
Application: Cranes, Power Construction Power Source: Honda Engine
Capacity: 50KN Weight(KG): 160
Size: 1200*850*750mm Selling Point: Big Cable Drum
Product Name: Stringing Equipment 5 Ton Honda Gasoline Powered Winch For Taking Up Rope Type: Cable Puller Winch
High Light:

engine powered winch

,

cable pulling winches

,

5 Ton Gasoline Powered Winch

Stringing Equipment 5 Ton Honda Gasoline Powered Winch For Taking Up Rope





Application

1. Widely used in electricity, telecommunications line construction group established tower

2. Mobile actinomycetes,

3. Tight line

4. Also in place lifting and construction, docks and other traction weights, suitable for field sites

without electricity, using handy.



Features

Speedy and Efficient;

Safe and Reliable;

Compact structure;

Small volume.



Transmission

Belt driven transmission



Brake System

Automatic clamp brake and clutch brake transmission interlock two brakes are braking action in positive and negative directions.



Technical Data

Model Type Power Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5Q Honda gasoline engine Slow 50 5
Quick 3 11
Reverse   4

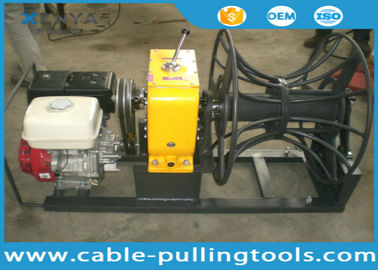

5 Ton Honda Gasoline Powered Winch 0



Practical Application

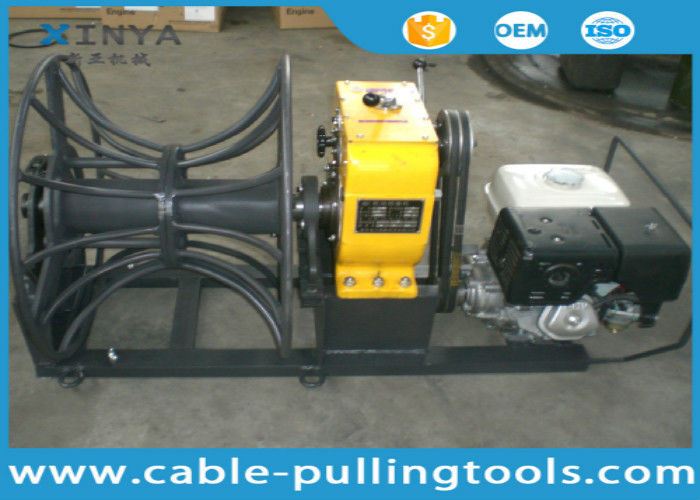

5 Ton Honda Gasoline Powered Winch 1
