Product Details:
|
Application: | Cable Pulling | Capacity: | 10 KN |
---|---|---|---|
Rated Power: | 2.2 KW | Weight(KG): | 48 |
Dimension(mm): | 650*450*500 | Engine: | Electric Engine |
Key Word: | Mini Winch | Max Output: | 0.8t |
Highlight: | gasoline powered winch,engine powered winch,Portable Cable Winch Puller Machine |

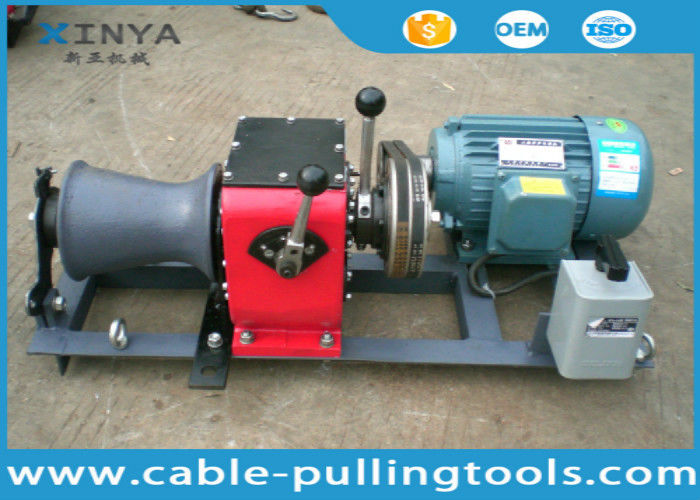

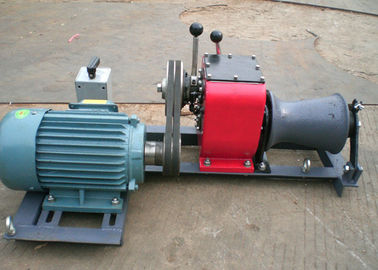

Small Portable Electric Cable Winch Puller Machine 1T
Application
winch is used in power transmission and distribution engineering, telephone construction tower erection,
traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt,
effectively prevent the damage of overload, there are pros and cons and the speed of file,
anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement,
such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Characteristic
1. Small Volume,Compact Structure.
2. Light Weight,Easy to Transport.
3. High Efficiency,Save Labor.
4. Widely Used,pulling,hoisting,lifting and so on.
5. Safe & Reliable
6. Interlock Brakes System.
Technical Data
Model |
Engine |
Gear |
Pulling Speed (m/min) |
Rated Pulling Force(Ton) |
Weight(Kg) |
JJQ-1 |
HONDA Petrol engine 4 HP |
(Slow) |
10.0 |
0.8 |
36 |
(Fast) |
15.0 |
0.6 |
|||
Reverse |
12.0 |
No Lifting! |
|||
JJD-1 |
Electric motor 2.2kw |
(Slow) |
10.0 |
0.8 |
46 |
(Fast) |
15.0 |
0.6 |
|||
Reverse |
12.0 |
No Lifting! |
|||
JJQ-3 |
HONDA Petrol engine(6HP)or Homemade Petrol engine |
(Slow) |
5.0 |
3.0 |
82 |
(Fast) |
9.0 |
1.8 |
|||
Reverse |
4.0 |
No Lifting! |
|||
JJC-3 |
Diesel engine(4HP) |
(Slow) |
6.0 |
3.0 |
108 |
(Fast) |
11.0 |
1.8 |
|||
Reverse |
4.5 |
No Lifting! |
|||
JJQ-5 |
YAMAHA Petrol engine (9HP) or Homemade Gasoline engine |
(Slow) |
5.0 |
5.0 |
145 |
(Fast) |
9.0 |
2.5 |
|||
Reverse |
3.2 |
No Lifting! |
|||
JJC-5 |
Diesel engine(6.6HP) |
(Slow) |
5.0 |
5.0 |
180 |
(Fast) |
9.0 |
2.5 |
|||
Reverse |
3.2 |
No Lifting! |
|||
JJQ-8 |
HONDA Petrol engine or homemade petrol engine 13HP |
(Slow) |
3.0 |
8.0 |
168 |
(Fast) |
5.0 |
3.0 |
|||
Reverse |
3.0 |
No Lifting! |
|||
JJC-8 |
Diesel engine 10.5HP |
(Slow) |
4.0 |
8.0 |
230 |
(Fast) |
7.5 |
3.0 |
|||
Reverse |
3.7 |
No Lifting! |
Kind note
Thee winch drum can be designed according to your requirement of the diameter
and length of the wire rope, and the detailed technical date will also be change
Practical Application
