Product Details:
|
| Power Source: | Hand Chain | Weight: | 8.4-238.8kg |
|---|---|---|---|
| Rated Load: | 0.5-30 Ton | Usage: | Tightening Tool |
| Type: | Chain Pulley Block | Application: | Construction Hoist |
| Highlight: | building construction tools,basic hand tools |
||

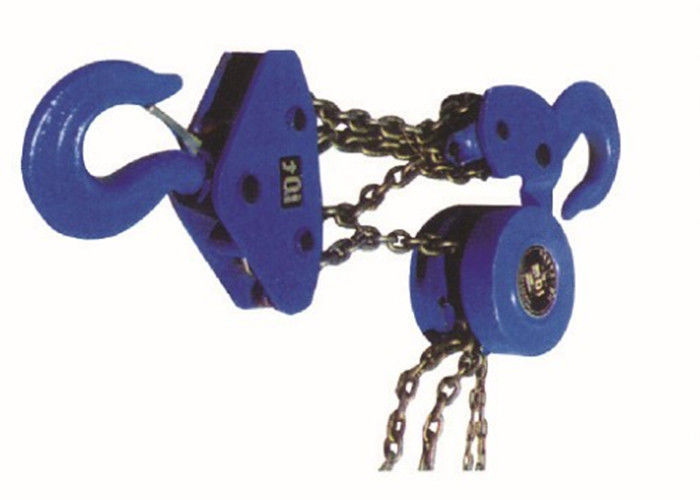

Building Construction Tools And Equipment Lever Lifting Pulley Block With Chain
Application
CE ISO Certificated High Quality Best Service Manual Chain Hoist is for the lifting of objects and mechanical traction, tightening steel wire.
Features
CE ISO Certificated High Quality Best Service Manual Chain Hoist is widely used in shipbuilding, electric power, transportation, construction,
mining, telecommunications and other sectors of the equipment installation, lifting, pulling. Hand hoist is safe, reliable, durable,
good performance, easy to repair, small volume, light weight, convenient to carry, not much manual force and high efficiency,
the perfect structure and beautiful appearance. Hand chain hoist and hoist are called manual hoist. It is used to lift weights by human,
and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load.
Technical Data
Model | HS-N0.5 | HS-N1 | HS-N1.5 | HS-N2 | HS-N3 | HS-N5 | HS-N10 | HS-N20 | HS-N30 | |
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | |
Standard Lifting(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | |
Test Load(kg) | 6.1 | 12.3 | 18.4 | 24.5 | 36.8 | 61.1 | 91.9 | 235.2 | 612.5 | |
Chain fall | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | |
Chain Diameter(mm) | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | |
Net Weight(kg) | 8.4 | 10.5 | 15.5 | 18.5 | 21.2 | 41.8 | 81.7 | 173 | 238.8 | |
Dimensions (mm) | A | 137.5 | 146.5 | 170 | 170 | 170 | 190 | 190 | 209 | 312 |
B | 137 | 162 | 183 | 194 | 220 | 288 | 384 | 625 | 691 | |
C | 270 | 317 | 399 | 414 | 465 | 618 | 798 | 890 | 1380 | |
D | 35 | 35.5 | 45 | 42.5 | 50 | 64 | 85 | 110 | 110 | |
K | 28 | 26 | 32.5 | 32 | 37 | 46 | 50 | 81 | 81 | |
Extra weight meter of extra lift | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | 29.1 | |

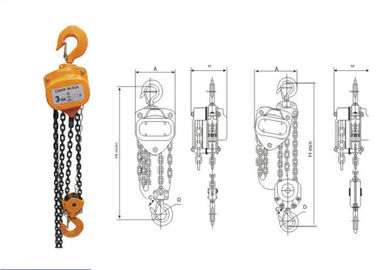

Diagram
