Product Details:
|
| Power Source: | Gasoline | Application: | Cranes |
|---|---|---|---|
| Capacity: | 10KN | Usage: | Construction Hoist |
| Warranty: | One Year | Weight(kg): | 36 |
| Dimension(mm): | 770*500*380 | Rated Power: | 4HP |
| Highlight: | engine powered winch,cable pulling winches |
||
Application

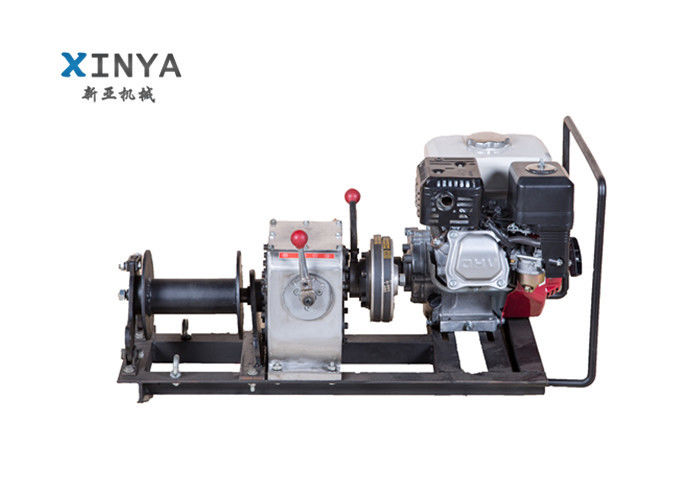

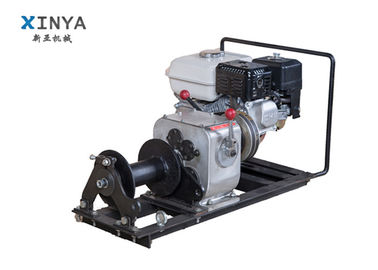

1 Ton Honda Gasoline Engine Powered Towing Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Our Values
Take First-Class Quality as Target and First-class Service.
As Responsibility, To Succeed By Scientific Management.
Customer in Heart, Quality in Hand, Technology in the Lead.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data
|
Model NO. |
Engine |
Gear |
Pulling Speed(m/min) |
Rated Pulling Force(Ton) |
Weight(Kg) |
|
JJM1-Q |
HONDA Petrol engine 4 HP |
Slow |
10.0 |
0.8 |
36 |
|
Fast |
15.0 |
0.6 |
|||
|
Reverse |
12.0 |
No Lifting! |
|||
|
Electric motor |
Slow |
10.0 |
0.8 |
46 |
|
|
Fast |
15.0 |
0.6 |
|||
|
Reverse |
12.0 |
No Lifting! |
