Product Details:
|
| Power Source: | Gasoline | Application: | Cranes |
|---|---|---|---|
| Capacity: | 10KN | Usage: | Construction Hoist |
| Material: | Steel | Weight(kg): | 36 |
| Dimension(mm): | 770*500*380 | Rated Power: | 4HP |
| High Light: | engine powered winch,cable pulling winches |
||

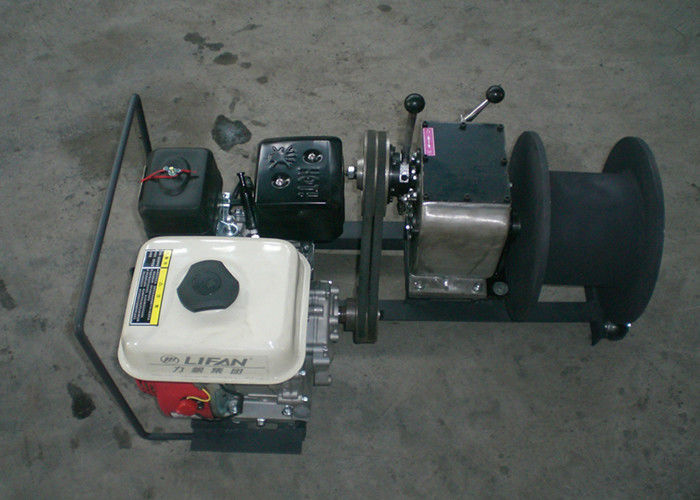

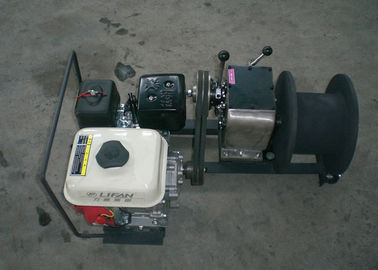

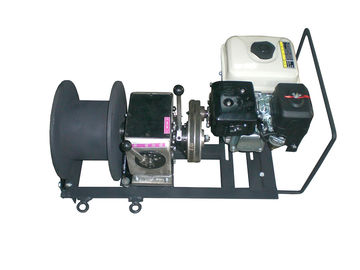

High Speed 1 Ton Gasoline Cable Drum Winch Lifting for Power Construction
Application
Petrol Engine Powered Winch Pulling Machine 1 Ton is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-Q | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Electric motor | (Slow) | 10.0 | 0.8 | 46 | |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! |
