Product Details:
|
| Weight: | 0.4-3.7kg | Package: | Carton |
|---|---|---|---|
| Type: | DIN, Cable Connector | Rated Load: | 30-160KN |
| Gender: | Female | Usage: | Tightenning |
| Highlight: | construction hand tools,building construction tools |
||

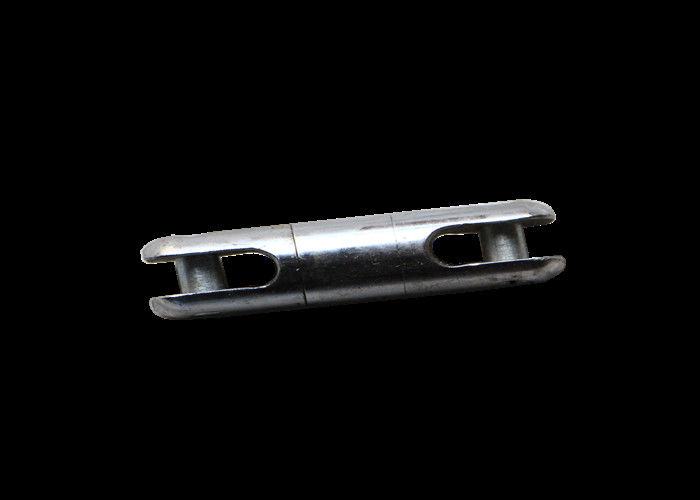

30-160KN Cable High Strength Swivel Connector in high strength
Product Description
Connects cable grip and pulling rope and helps eliminate winding/tangling of rope and wire during cable pulls. The swivels have been manufactured with sealed bearings and are precision machined from high grade steel. They are usually designed with a radial bearing for a bending load and a bronze thrust bearing for tensile loads. Before locking, the bronze bearing will rotate up to a portion of the safe working load. When it has gone past this point, rotation will only happen when the pulling tension has been relieved.
Application
In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
It adopts high strength stainless material.
It is high strength, light weight, and good looking.
and it can smoothly go through the machine traction pulley and the tension machine.
Advantages/ Features
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Outter Diameter(mm) | Groove Width(mm) | Weight(kg) |
| 80210 | XBL-1 | 30 | Φ26 | 12 | 0.4 |
| 80211 | XBL-2 | 35 | Φ34 | 14 | 0.5 |
| 80212 | XBL-3 | 55 | Φ40 | 16 | 1.9 |
| 80213 | XBL-4 | 80 | Φ52 | 18 | 2.2 |
| 80214 | XBL-5 | 120 | Φ60 | 24 | 3 |
| 80215 | XBL-6 | 160 | Φ65 | 28 | 3.7 |
