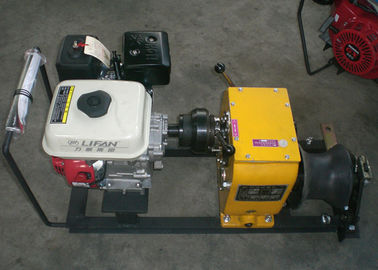

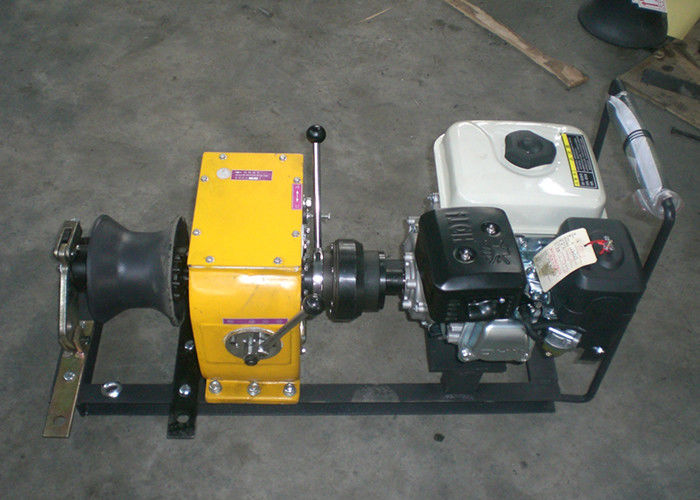

High Speed Gasoline Cable Winch Puller With Shaft Transmission

High Speed Gasoline Cable Winch Puller With Shaft Transmission
High Speed Gasoline Cable Winch Puller With Shaft Transmission High Speed Gasoline Cable Winch Puller With Shaft Transmission

Large Image :  High Speed Gasoline Cable Winch Puller With Shaft Transmission

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: JJM3Q
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: US $900 - 1,400 / Set
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 set/sets per month

High Speed Gasoline Cable Winch Puller With Shaft Transmission

Description
Power Source: Gasoline Application: Power Construction
Capacity: 30KN Rated Loading: 3 Ton
Weight(kg): 85 Dimension(mm): 780*450*520
Rated Power: 4HP Selling Point: Fast Speed Winch
High Light:

gasoline powered winch

,

engine powered winch

3 Ton High Speed Gasoline Cable Pulling Winch With Shaft Transmission





Brief introduction



Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Work principle



The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.



Application



It is used for tower erection, stringing in electric power line construction.



Features



small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.high efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command. safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



Our Values

1,Take First-Class Quality as Target and First-class Service.

2,As Responsibility, To Succeed By Scientific Management.

3,Customer in Heart, Quality in Hand, Technology in the Lead.



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-B gasoline Engine Slow 5 3
Quick 12 1.8
Reverse 3



Test Before Delivery

High Speed Gasoline Cable Winch Puller With Shaft Transmission 0



Application

High Speed Gasoline Cable Winch Puller With Shaft Transmission 1
