Product Details:
|
| Power Source: | Diesel Engine | Application: | Construction Hoist |
|---|---|---|---|
| Capacity: | 30KN | Max Pulling Speed: | 9m/min |
| Material: | Steel | Item: | 3 Ton Diesel Cable Drum Cable Pulling Winch Manufacturer |
| Usage: | Hoist | ||
| High Light: | engine powered winch,cable pulling winches |
||

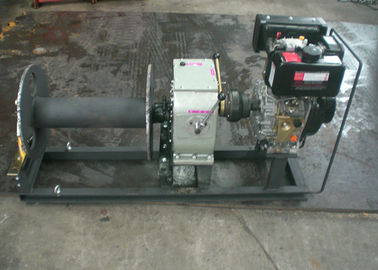

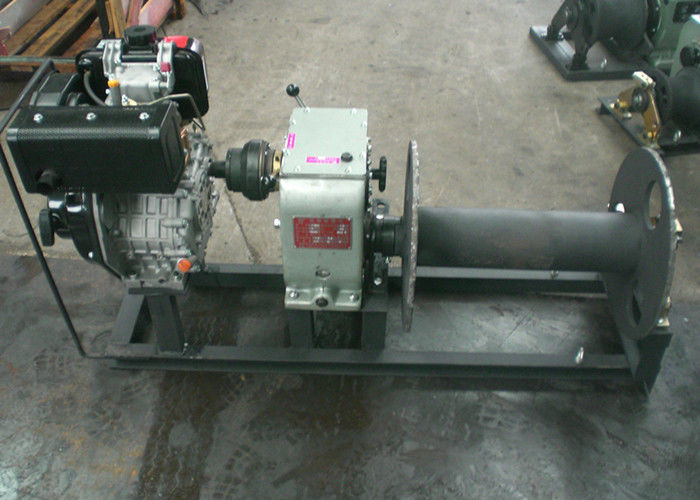

3 Ton Diesel Cable Pulling Drum Winch Capstan for Construction Hosit
Application
3 Ton Diesel Cable Drum Cable Pulling Winch Manufacturer is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Features of engine powered winch
1.High versatility
2.Compactstructure
3.Smallvolume, lightweight, convenience in using and transferring
4.Driving stably
5.Very light noise
6.With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7.Adjustable lifting or pulling speed for different usage environment.
8.This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc…
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
|
JJM3C |
Diesel Engine | Slow | 5 | 3 |
| Quick | 9 | 1.8 | ||
| Reverse | 4.5 |
