Diesel Engine Powered Cable Pulling Winch Machine

Diesel Engine Powered Cable Pulling Winch Machine
Diesel Engine Powered Cable Pulling Winch Machine Diesel Engine Powered Cable Pulling Winch Machine

Large Image :  Diesel Engine Powered Cable Pulling Winch Machine

Product Details:
Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO
Model Number: JJM3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: US $1000 - 1,400 / Set
Packaging Details: Packed with Carton or wooden case
Delivery Time: Five days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 set/sets per month

Diesel Engine Powered Cable Pulling Winch Machine

Description
Power Source: Diesel Engine Power Application: Cranes, Power Construction; Hositing;pulling
Capacity: 30 KN Warranty: One Year
Material: Steel Max Pulling Speed: 12m/min
Dimension(mm): 840*600*500 Weight(kg): 108
High Light:

gasoline powered winch

,

cable pulling winches

3 Ton Speedy Diesel Engine Powered Wire Rope Winch/Cable Pulling Winch Machine



Application

3 Ton Petrol/diesel Engine Speedy Cable High Speed Winch  is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3C Diesel engine 6HP Slow 5 3
Quick 12 1.8
Reverse 3.5

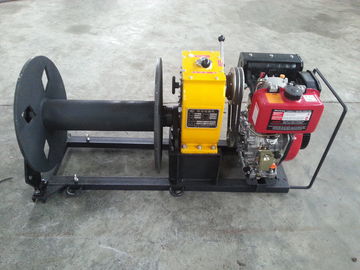

Diesel Engine Powered Cable Pulling Winch Machine 0

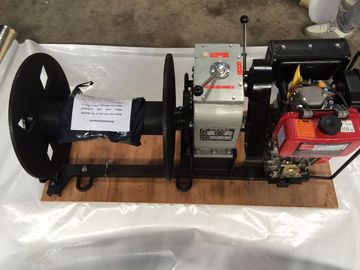

Diesel Engine Powered Cable Pulling Winch Machine 1
